DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves

DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves

    • DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves
    • DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves
    • DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves
    • DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves
  • DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: F-TOP-1671

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $600 - 1,000 / Piece
    Packaging Details: carton box
    Delivery Time: 200 Piece/Pieces per Month
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Intelligent Control Head Power: DC.24V
    Pneumatic Pressure: 4-7bar Level Of Protection: IP67
    Operation interface:: Key Working Pressure: 10bar
    Structure: With Pneumatic Actuator
    High Light:

    pneumatic valve positioner

    ,

    double acting positioner

    DONJOY Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves



    Technical Feature

    1.Feedback output:PNP DC24V& 4-20mA

    2.power Supply: DC24V±10%

    3.Bus Communication:AS-I BUS

    4.Accuracy: Repeat positioning accuracy≤0.2%

    5.Ajusting: Single button auto-adjusting function

    6.Operation mode: Manual/Automatic operation

    7.Leakproof diagnostic Function

    8.Display: two-section Light Color open: Green/Red, Close:red/Green

    9.Strocke Range: 0-180degree

    10.Middle position:Yellow(Using a three-stage actuator)



    SPECIFICATION

    Product Name Intelligent valve positioner
    Medium Lubricated compressed air, inert gases
    Max. Working temperature 70℃
    Working pressure 1.5 bar - 7 bar (22PSI to 102PSI)
    Connector G1/8"
    Level of protection IP67
    Stroke Min. 3mm; Max. 70mm
    Max. C - TOP units 31 C - TOP units
    Connecting cable 2m
    AS-I BUS max. length: 1m
    Operation mode Pneumatic operation
    Certificate

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO





    Applications

    F-TOP is pneumatic valve position feedback unit that is used for rotary motion. it's mainly designed for process position feedback of valve. It's compatible with most PLC automatic system. With digital communication or AS-I BUS Communication. It's used to control all kinds of processing valves by position feedback output, 3-section LED light display, Leakproof, et. It could be installed to various kind of pneumatic valves, such as pneumatic butterfly valve, ball valve, globe valve etc which is in the rotary motion



    Design and features

    Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.

    Since cables are largely decreased, installation and start up become more convenient.

    Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are the same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.

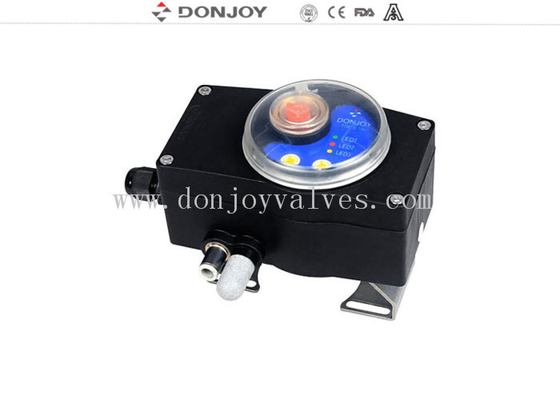

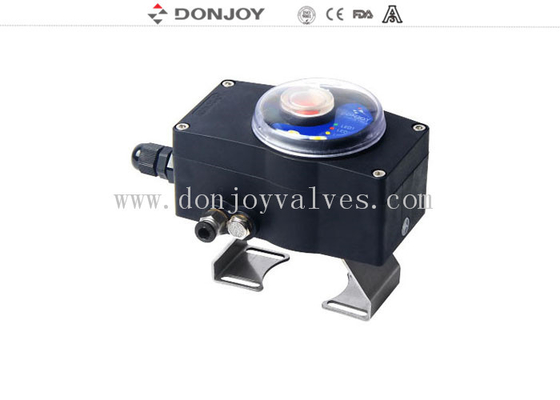

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 0

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 1

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 2

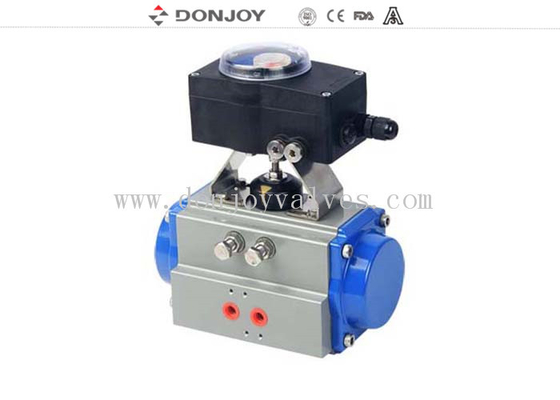

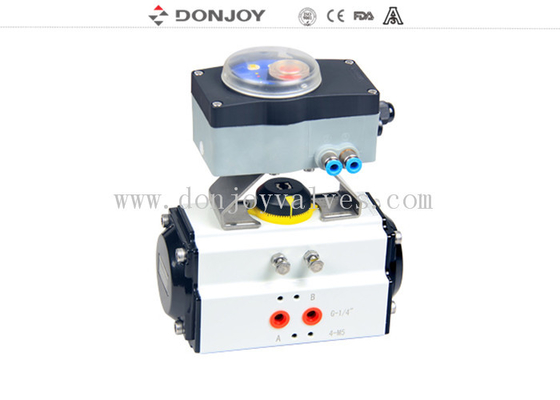

    Installation

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 3

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 4

    DONJOY Super Stainless steel DC24V On/Off Auto Electrical Position Feedback F-TOP for control valves 5

    FAQ

    1,How can we get sample?

    We could provide sample to you,but there will have sample cost.About sample ,pls freely contact or email me.



    2,Our business payment terms ?

    We will accept: T/T,L/C,Alipay.



    3,Our standard export packing ?

    For small order:  carton box and weaving bag.

    Large order: Wooden box



    4,Shipment way choose ?

    Small orders will be choose by express,by airline.

    Large orders will be choose by sea.

    It will according to customer’s request.



    5. What is your MOQ?
    A: 1 PCS.



    6. What is the delivery time?
    A: It is about 5-7 days after we receive the payment for small order.

    For large order,it takes 20-30 working days after receiving down payment.

    It depends on customer order,



    7. Do you have products in stock?
    Yes, some stock can be shipped out within 3 days.



    8. Do you test all your goods before delivery?
    A: Yes, all products are fully inspected before delivery.



    9. What is the warranty?
    A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibility.
