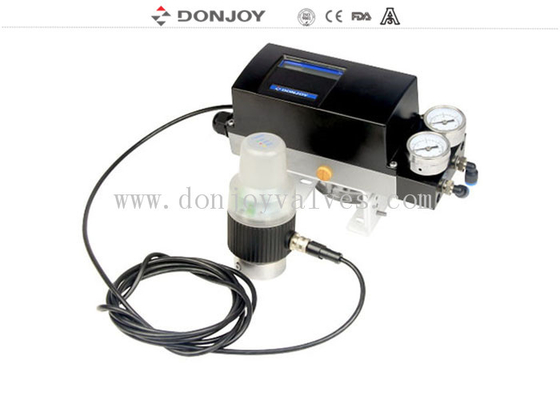

Square type intelligent valve positioner for Non-retention ball valve



Specification

Product Name

Intelligent Valve Positioner of Square Type

Power

DC.24V

Work Pressure

10 bar

Pneumatic pressure

4-7 bar

Material

SS304 / 316

Working temperature

10℃ ~ 130℃ (-10℃ ~ 150℃ for angle seat valve and globe valve)

Level of protection

IP67

Standard function

0/4-20mA to 0-5/10V signal input

Optional function

0/4-20mA, 0-5/10V position feedback output

Optional function

Device Net But Control

Operation interface

LCD display

Packaging

Bubble pack for each valve.

Outside packing is carton or plywood cases.

Or as per the request of customers.

Usually within 20 days after receiving T/T down payment.

Optional

Gasket: NBR / MVQ / FPM



Function feature

Certification of explosion protection: EXD Ⅱ BT4

Level of protection: IP67

Signal input: 0-4/20mA, 0-5/10V

Signal feedback: 0-4/20mA, 0-5/10V

BUS protocol: DEVICE NET BUS



Technical feature

The control could be used as a positioner or process controller.

As a positioner, it could set the valve position according to set point.

As a process controller, MPU will be received the signal from control by comparing setting position value of valve with actual position of valve, through PIC control algorithm, process controller will drive the valve to the exact target positioner of valve.

The controller is composed of MPU, detection unit by controlling signal, position detector, LCD display, keyboard and piezoelectric valve etc..



Installation

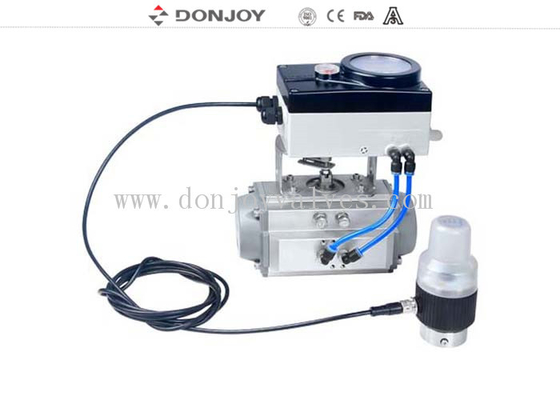

The actuators of angular travel could be offered, such as butterfly valve, ball valve and the valves etc..

Specification: 1 inch - 12 inch, DN25 - DN200



Order information



IL-TOP-S Square Controller



Model



Feature



Position feedback



Description



IL-TOP-S-001-M



Positioner + Process control



4-20mA/0-5/10V



Single-acting



IL-TOP-S-002-M



Positioner + Process control



4-20mA/0-5/10V



Double-acting



IL-TOP-S-001



Positioner + Process control



NO



Single-acting



IL-TOP-S-002



Positioner + Process control



NO



Double-acting



IL-TOP-S-001-BUS





Positioner + Process control + BUS





Single-acting + BUS



IL-TOP-S-002-BUS





Positioner + Process control + BUS





Double-acting + BUS



IL-TOP-S Square Controller (Explosion Protection: EXD Ⅱ BT4)



Model



Feature



Position feedback



Description





IL-TOP-S-001-M-EX





Positioner + Process control





4-20mA/0-5/10V



Single-acting - Explosion levels





IL-TOP-S-002-M-EX





Positioner + Process control





4-20mA/0-5/10V



Double-acting - Explosion levels





IL-TOP-S-001-EX





Positioner + Process control





NO



Single-acting - Explosion levels





IL-TOP-S-002-EX





Positioner + Process control





NO



Double-acting - Explosion levels





IL-TOP-S-001-BUS-EX





Positioner + Process control + BUS





Single-acting, BUS - Explosion protection





IL-TOP-S-002-BUS-EX





Positioner + Process control + BUS





Double-acting, BUS - Explosion protection



Installation instruction

Square type intelligent valve positioner for Non-retention ball valve 0

Square type intelligent valve positioner for Non-retention ball valve 1

Square type intelligent valve positioner for Non-retention ball valve 2
