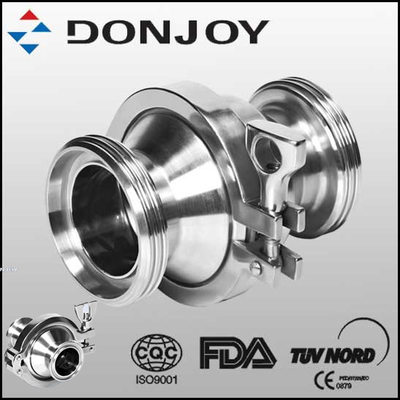

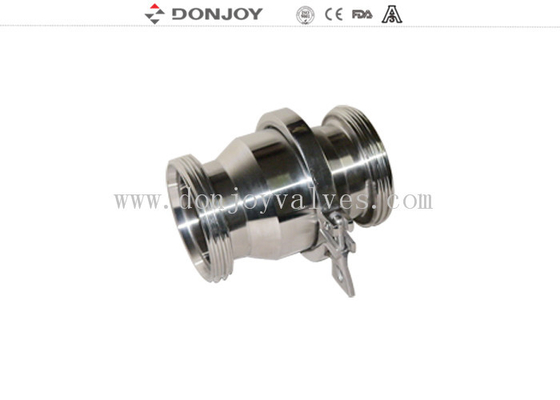

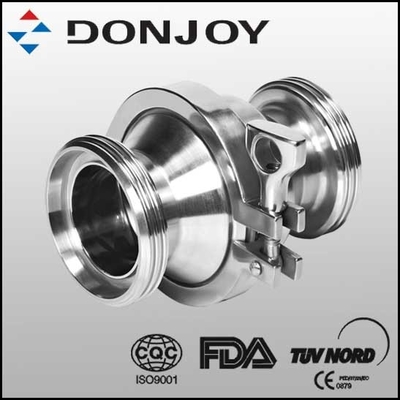

Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve

Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve

    • Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve
    • Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve
    • Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve
  • Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.DIN-VZH130A1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 3/4" - 3 1/2" , DN15-DN100
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
    Polished: Mirror, Matt Working Temperature: -10℃ To +120℃(EPDM)
    Origin: Wenzhou,china Type: Body Clamp Connection
    High Light:

    hydraulic inline check valve

    ,

    pneumatic check valve

    Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve



    Specification

    Product Name: SS304/SS316L Check Valve,Non-retention valve,body clamp connection
    Valve Body Material: SS304 or SS316L
    Seal Material: EPDM
    Max. Working Pressure: 10Bar
    Opening pressure: 0.1-0.3bar
    Max. Working Temperature: 120 degree C
    Availably size: 3/4" - 3 1/2" , DN15-DN100
    Availably connection: Thread,Weld,Clamp
    Availably standard: DIN,SMS,3A
    Certificate: FDA,CE



    Description:

    Hydraulic Check Valves

    1. Easy disassemble

    2. Small-size construction

    3. DIN11851 connection (standard)



    Applications:

    1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

    2. It can be used to prevent the flow less from returning avoid pipe-hammering

    3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.



    Technical Information



    • A Sanitary Check Valve can vary in size from 1/2″ to 4″.
    • The end connection can be butt-welded, sanitary tri-clamped, threaded or others upon request.
    • The maximum Working Pressure available is 10 bar (145psi)
    • Valves are available for the following Cracking pressures:
    4.35psi (0.3bar) for DN25
    2.9psi (0.2bar) for DN32-40
    1.45psi (0.1bar) for DN50-100

    • The temperatures at which the valves function depending on material range from:
    EPDM 14°F to 248°F (-10℃ to 120℃)
    SILICONE -22°F to 356°F (-30℃ to 180℃)
    VITON (FPM) 23°F to 356°F (-5℃ to 220℃)
    Teflon (PTFE) -4°F to+482°F (-20℃ to 250℃)

    • The Surface finish can be Ra 32μin (0.8μm) as default, or better upon request.

    Things to Keep in Mind When Installing a Sanitary Check Valve



    Sanitary Check Valves can be installed horizontally or vertically. However, the following specifications must be followed for ball and disk check valves:

    – Ball Check Valve –

    In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.

    In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.

    – Disk Check Valve –

    Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position.

    Sanitary Check Valve Installation Direction



    Drawing





    Body Clamp Connection Hydraulic Cylinder Check Valve ,Therad connection check valve 1

    Packaging Details

    Bubble pack for each valve.

    Outside packing are carton or plywood cases.

    Or as per the request of customers.



    Tag :One way valve, Spring check valve, Non retention valve
