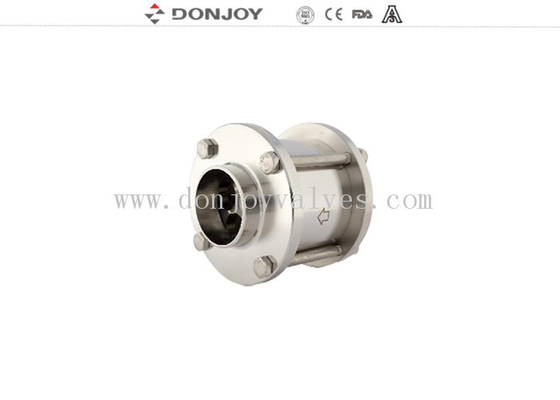

Three Piece Welding Hydraulic Pneumatic Check Valve For Beverage / Wine / Oil

Three Piece Welding Hydraulic Pneumatic Check Valve For Beverage / Wine / Oil

hydraulic cylinder check valve

pneumatic check valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.MINI-VAQ100S1

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
2"
Stanadard:
DIN,3A,SMS,ISO
Connection:
Welded
Polished:
Mirror, Matt
Max Pressure:
10 Bar
Application:
Wine, Oil, Cosmetics.etc
Name:
Sanitary Three Piece Check Valve
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Three Piece Welding Hydraulic Pneumatic Check Valve For Beverage / Wine / Oil



Quick Detail:

Hydraulic Check Valves

Type:  Clamped, thread, Welded,Flange Type

Small-size construction



Specification

Product Name: Sanitary three piece check valve, 2",1.4301, weld check valve for beverage,wine,oil
Valve Body Material: SS304 or SS316L
Seal Material: EPDM
Max. Working Pressure: 10Bar
Opening pressure: 0.1-0.3bar
Max. Working Temperature: 120 degree C
Availably size: 1 "-4" , DN25-DN100
Availably connection: Thread,Weld,Clamp
Availably standard: DIN,SMS,3A
Certificate: FDA,CE



Description:

Option of Check Valve

1. Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



Technical Specifications :

Max pressure : 10Bar

Opening Pressure : 0.3Bar ( DN25, 1INCH )

0.2Bar, (DN32/DN40,1.25-1.5INCH)

0.1Bar, (DN50-DN100)



Target of competition

Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.



Operating Principle

The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close.



Option of Hydraulic check valves

1 Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



What Are Sanitary Valves Used For?

Sanitary valves are two-port valves that feature two separate openings on their body. Fluid enters one opening and exits from the other. These valves help with applications that require liquids to flow in only one direction.

Sanitary valves come in two forms: horizontal and vertical.

Horizontal valves are suited to horizontal lines that need self-draining valves

Vertical valves can be used in either vertical or horizontal installations; in horizontal applications, vertical valves help when self-draining valves can’t maintain pump prime and temperature continuity

In the case of horizontal spring-check valves, product flow pushes a disc in the valve away from the seat. When forward flow pressure is removed, the electropolished spring will return the disc to its original position and hold it against the seat to keep it closed. Backflow pressure will also force the disc into the closed position.

Check valves help in scenarios that require the evacuation of process pipelines. This can occur for a host of reasons, especially those involving product recovery or drainage. Some applications may also require air agitation on the products in the pipelines or in the tanks they lead to. Check valves can accomplish this.



How Does It Work

1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

2. It can be used to prevent the flow less from returning avoid pipe-hammering.

3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.





Drawing

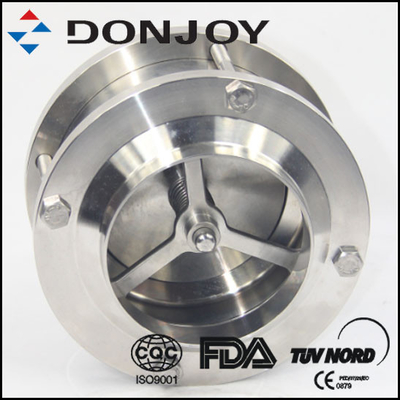

Three Piece Welding Hydraulic Pneumatic Check Valve For Beverage / Wine / Oil 0

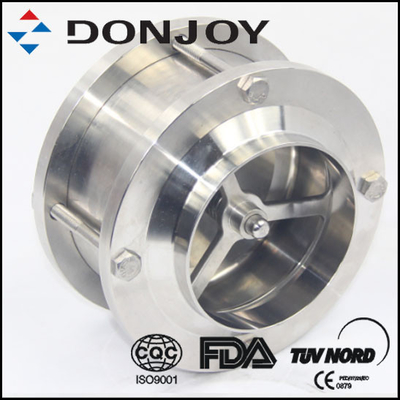

Three Piece Welding Hydraulic Pneumatic Check Valve For Beverage / Wine / Oil 1

Tags : Check valve, Non rentention valve, One way valve
