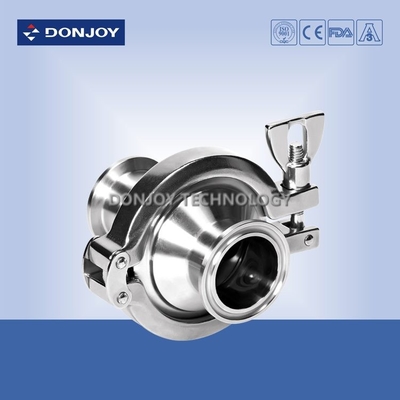

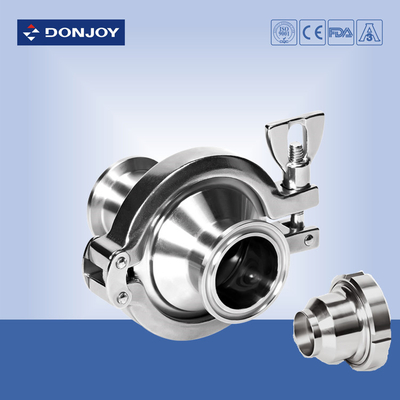

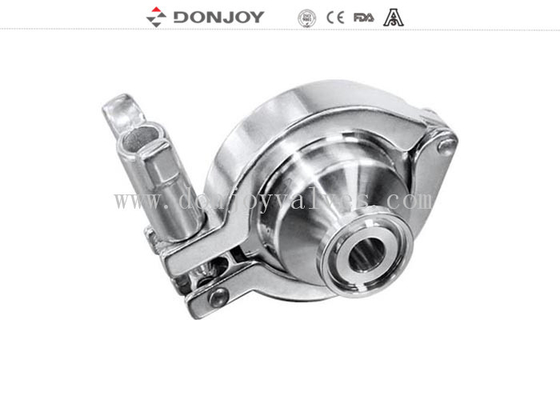

SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention

SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention

    • SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention
    • SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention
    • SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention
  • SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.MINI-VAQ100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Brand: Donjoy SIZE: 1/2"-4“,DN25-DN100
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
    Polished: Mirror, Matt Name: 2.5 Inch Clamped Check Valve
    Standard: DIN 11851 Connections
    High Light:

    hydraulic cylinder check valve

    ,

    pneumatic check valve

    SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention



    Quick Detail:

    Hydraulic Check Valves

    Connection:  Clamped, thread, Welded

    Size: DN25/1" to DN 100/4", 1/2",3/4"

    Easy disassemble

    Small-size construction

    DIN11851 connection (standard)





    Specification

    Product Name: SS316L, 2.5 inch Clamped Check Valve,Non-retention valve with middle clamp type
    Valve Body Material: AISI 304 or AISI SS316L
    Seal Material: FPM
    Max. Working Pressure: 10Bar
    Opening pressure: 0.1-0.3bar
    Max. Working Temperature: 120 degree C
    Availably size: DN15-DN100 or 1/2" - 4"
    Availably connection: Thread,Weld,Clamp
    Availably standard: DIN,SMS,3A
    Certificate: FDA,CE





    Description:

    Option of Check Valve

    1. Connection: Clamp, Weld, Thread

    2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

    3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



    Applications:



    Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

    It can be used to prevent the flow less from returning avoid pipe-hammering

    It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.



    Packaging Details

    Bubble pack for each valve.

    Outside packing are carton or plywood cases.

    Or as per the request of customers.



    Certificate

    Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
