1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP

Large Image : 1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VHX103Q1-021

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	Stainless Steel 304 / 316L	Media:	Fluid
Operation:	Pneumatic	Size:	DN25 - DN150 Or 1"-6"
Pressure:	Medium Pressure	Valve Seat:	Single Seat
Product Name:	Pneumatic Reversing Valve Of Sanitary Grade	Structure:	With Pneumatic Actuator And C-top
Highlight:	diaphragm actuator valve , pressure release valve

1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP
Quick detail
single seat pneumatic reversing seat valve
reversing valve multi-directional with pneumatic actuator
regulating divert seat valve with single seat

Specification

Product Name:	1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP
Valve Body Material:	SS304 / 316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	120°C
Available size:	DN25 - DN150 or 1" - 6"
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Pneumatic
Structure	With C - TOP
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic etc
Combination of valve body:	Flexible
Sealing shaft:	Waveform
Seat:	Single seat

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Optional
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Product display

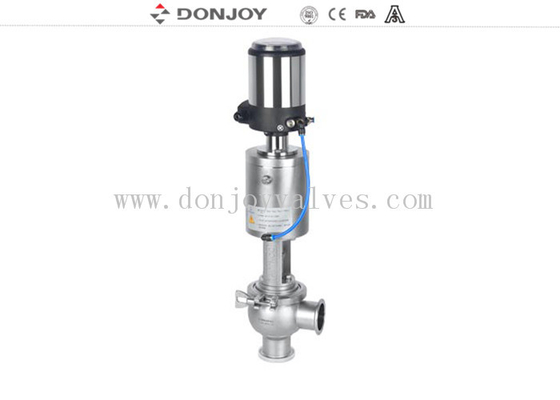

1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP 0

Product body type

1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP 1

Tag : Seat Valve, Aspetic shut off valve, Sanitary valves
