Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Contact Us

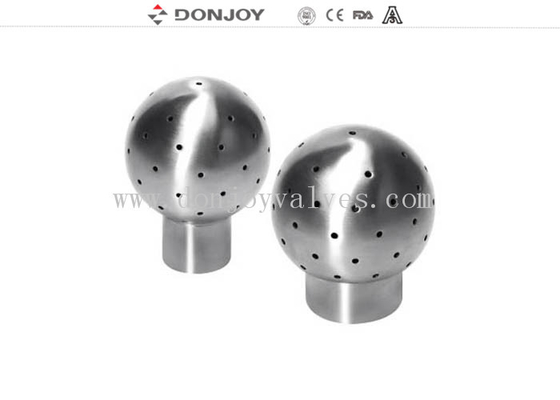

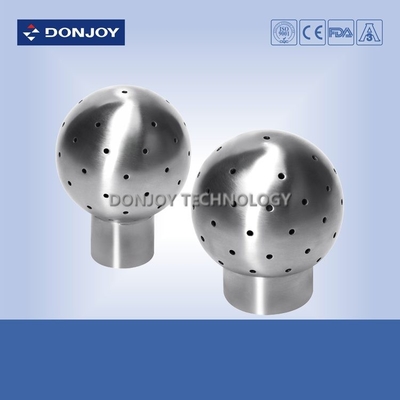

360 Degree Fixed Tank Spray Balls Pin Connection For Yeast Breeding
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Nozzle Size:5mm, 6mm
Specification
|
Product Name: |
Fixed Cleaning Ball, Clean Head, Pin Connection, 360Degree spray |
| Material: | SUS304/316L;PTFE |
| Flow: | 4-45m³/h |
| Inlet Pressure: | 4-10 bar |
| Suggest Pressure: | 6 bar |
| Availably size: | 1"-2.5" |
| Connection way: | thread BSP,clamp Pin, Welded |
| Max temperature: | 95°C |
| Max environment temperature: | 140°C |
| Application Scope: | Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
| Typical application: | process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
| Advantages: | Self-cleaning; low liquid consumption; heath design |
| Typical cleaning methods: | fixed installation CIP system |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |
Typical Application
1. Fixedinstallaiton CIP System
2. Process Containers and reator
3. Store tank
4. Transport tank equipment
5. Fermentation
6. Yeast Breeding

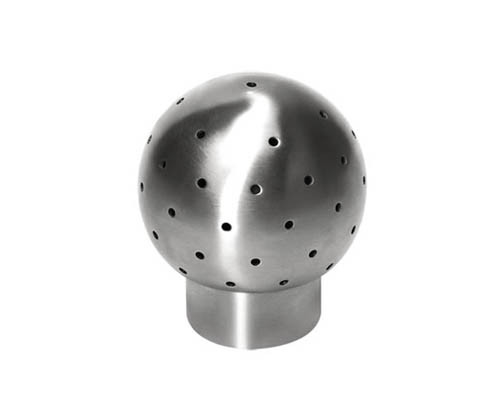

7. Fixed Cleaning BALL: 360Degree spray Completely 180 Degree spray aperure of spray is 2.5mm
Operating Principle
1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.
Weld Cleaner Selection Table
| Size | Q | A | Pressure(Bar) | Spray Radius(m) | Flow Rate |
| 1” |
63
|
80 | 2.5 | 1.0-1.25 | 17/10 |
| 1.25” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 1.5” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 2” | 91 | 108 | 3.5 | 2.0-3.0 | 55/38 |
| 2.5” | 100 | 115 | 3.5 | 3.0-3.5 | 58/41 |
FAQ
1. What about the delivery time of the Cleaning Ball
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard Matt outside .If your have requirement in Ra,please let me know it.
3.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization
4.What connection of the cleaning ball you have ?
Answer: Clamped, Thread, Welded, Bolted..
