| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $333 - 777 / Piece |
| Packaging Details: | carton box |
| Delivery Time: | according to order |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Item: | Electric Control Valve | Connection: | Clamp Connection |
|---|---|---|---|
| Operation: | Support Manual Operation | Pressure: | 10 BAR |
| Switch: | Optical ON / OFF | Controller: | Intelligent |
| High Light: | digital valve positioner,double acting positioner |
||

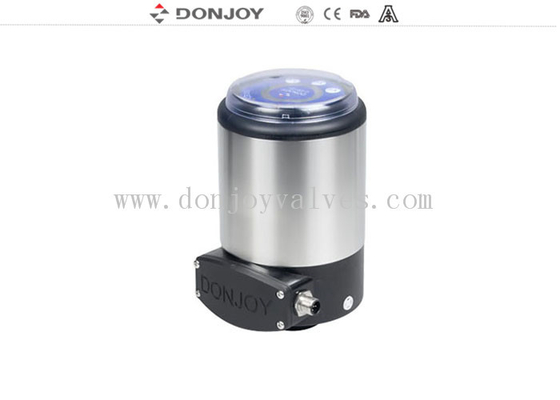

Intelligent electric reversing valve with valve positioner / controller
Specification
|
Product Name: |
Intelligent electric reversing valve with valve positioner / controller |
|
Valve Body Material: |
SS304 / 316L |
|
Seal Material: |
EPDM (standard) FPM / SILICON / NBR, FDA177.2600 |
|
Available size: |
DN25 - DN100 |
|
Available connection: |
Clamp connection etc. |
|
Available standard: |
3A / DIN / SMS / RJT / ISO / IDF |
|
Operated: |
Electric power |
|
Structure |
With actuator |
|
Certificate: |
3A, CE, FDA, ISO |
|
Feature: |
bilingual menu |
|
Structure: |
With electric control unit |
Model choosing table
| Controller C-TOP 1421/1721 (Recommend version) | |||
 |
Input control | Recommend actuator | Output signal |
| 1 solenoid valve | single acting pneumatic actuator | PNP 2 postiion 4-20mA | |
| 2 solenoid valves | Double acting pneumatic actuator | PNP 2 position 4-20mA | |
| 3 solenoid valves | for mixing proof valve | PNP 3 position 4-20mA | |
| 3 Solenoid valves | for mixing-proof valve | PNP 4 position (including 1pc external sensor) 4-20mA | |
| Controller C-TOP 1421/1721 (Bus protocol version AS-I BUS-V3.0) | |||
|
Input control | Recommend actuator | Output signal |
| 1 solenoid valve | single acting pneumatic actuator | PNP 2 postiion 4-20mA | |
| 2 solenoid valves | Double acting pneumatic actuator | PNP 2 position 4-20mA | |
| 3 solenoid valves | for mixing proof valve | PNP 3 position 4-20mA | |
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
Pressure: 10bar
Packaging
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Structure
With electric control unit.
Operation
Electric power
Display
