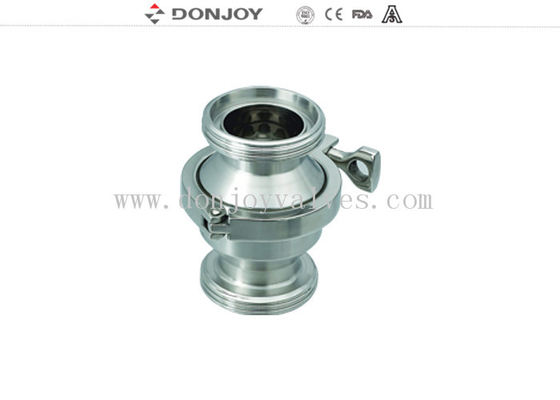

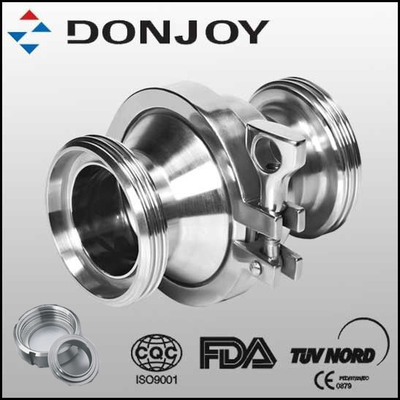

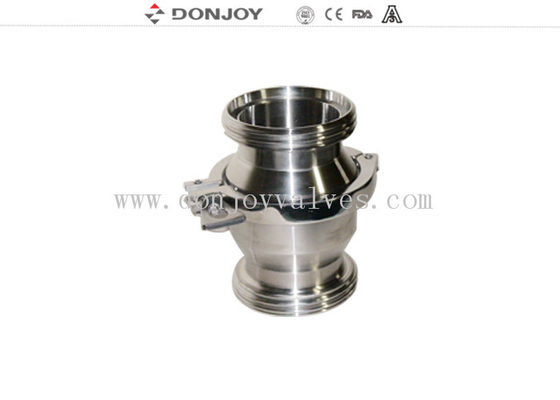

Middle Clamp Hydraulic Check Valves With Thread Connection On 2 Ends For Drink Industry

Large Image : Middle Clamp Hydraulic Check Valves With Thread Connection On 2 Ends For Drink Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO. DIN-VZH130A1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	$22.73-134.85/PC
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Thread Standard:	DIN	Middle Connection:	Clamp Connection
End Connection:	Thread Connection	Middle Clamp:	Optional
Size:	DIN20 - DIN100	Thread Type:	Optional
Highlight:	hydraulic inline check valve , hydraulic cylinder check valve

Middle clamp type check valve with thread connection on 2 ends for drink industry

Quick Detail

Hydraulic Check Valves

Easy disassemble

Small-size construction

DIN11851 connection (standard)

Specification

Product Name:	Middle clamp type check valve with thread connection on 2 ends for drink industry
Valve Body Material:	SS304 / SS316L
Seal Material:	EPDM
Max. Working Pressure:	10 Bar
Opening pressure:	0.1 - 0.3bar
Max. temperature:	120 ℃
Available size:	DN20 - DN100
Available connection:	Thread,Weld,Clamp
Available standard:	DIN,SMS
Certificate:	FDA,CE, ISO etc.
Middle connection:	Clamp
End connection:	Thread

Description

Option of Check Valve

1. Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM, PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO

4. Middle clamp: optional

5. Thread type: optional

Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.

Operating Principle

The valve opens when the pressure of the fluid exceeds the pressure to spring,

When the two pressures are equalised, the valve closes, A stronger counter –

pressure also makes the valve close.

Details

Q1: Transportation?

A1: By air / sea / express / land etc.

Q2: Production base?

A2: Wenzhou Binhai production base & Wenzhou Airport production base.

Q3: Main production?

A3: Sanitary valve, pump and pipe fittings.

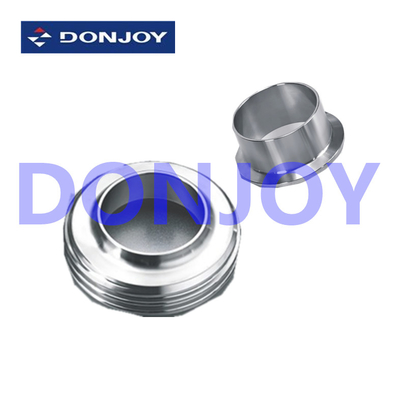

Specification in DIN thread connection

Middle Clamp Hydraulic Check Valves With Thread Connection On 2 Ends For Drink Industry 0

Middle Clamp Hydraulic Check Valves With Thread Connection On 2 Ends For Drink Industry 1
