DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable

Large Image : DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.VSJ400N1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Name:	Four-way Sight Glass	SIZE:	DN40-DN100,1.5"-4"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Thread, Weld, Clamp, DIN, SMS, IDF
Polished:	Mirror, Matt
Highlight:	SS Sight Glass , stainless sight glass

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable

Quick Detail

Four-way Sight Glass

Size:DN40-DN100,1.5"-4"

Gasket: EPDM,PTFE

Working temperature(basic):-10 to 150 degree

Working temperature(basic with lamp):-10 to 80 degree (depending on light heat resistance)

Specification

Product Name:	Four way sight glass,Zero Dead Angle,Noretention sight glass,Rechargeable
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM, NBR, FPM in accordance with FDA 177.2600
Sight glass:	tempered glass
Max.temperature:	-10 to 150 degree
Battery:	use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.
Availably connection:	Clamp, Thread, weld, DIN, SMS, IDF
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
Four-way sight glass is comprised of stainless steel frame and tempered glass. Through it,operator can observe the flowing of liquid clearly and precisely in the fields of food, cosmestic,pharmaceutical and fine chemicals industires.

Technical Features:
No retention, zero dead angle, high lilght, white cold light source, waterproof, explosion-proof.Cable power supply supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)

Product drawing

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable 0

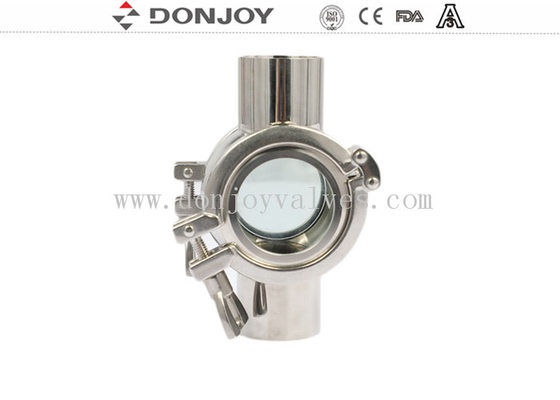

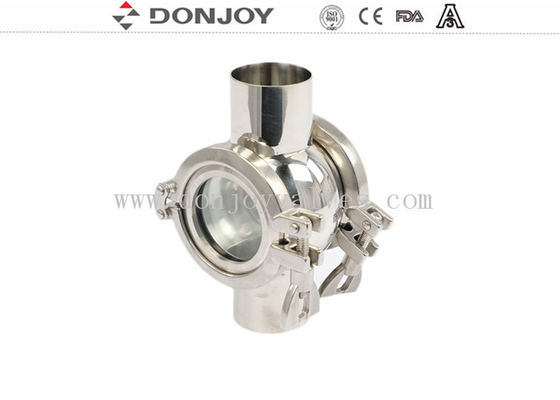

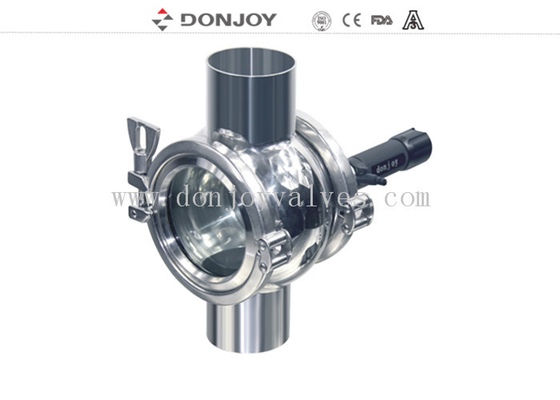

Product display

DIN / 3A Stanadard 4 sight glass Zero Dead Angle Noretention Rechargeable 1

Tag : 4 way sight glass, Sight glass with light.
