Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp

heavy duty clamp

high pressure hose

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.VSJ303N1

Contact Us

Request A Quote
Product Details
Name:
Union Sight Glass With Cable Lighting
SIZE:
DN65 - DN150
Stanadard:
DIN, 3A, SMS, ISO
Connection:
Welded, Clamped, Thread
Polished:
Mirror, Matt
Glass:
Tempered Glass
Prefabricated Cable:
2M
Feature:
Prefabricated Pin Plug
Payment & Shipping Terms
Minimum Order Quantity
30PCS
Packaging Details
Carton, Wooden Case
Delivery Time
5-30 working days
Payment Terms
T/T,L/C, Credit Card
Supply Ability
1000pcs per month
Product Description

Union sight glass Stainless Steel Sanitary Fittings union sight glass with lamp



Brief Instruction

Union Sight Glass with cable lighting

Size:DN65-DN150,3"-6"

Gasket: EPDM,PTFE

Working Pressure:10Bar

Powered DC 24V

Precast cable 2 M



Specification

Product Name:

union sight glass Stainless Steel Sanitary Fittings union sight glass with lamp

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM,PTFE,SILICON,etc

Sight glass:

tempered glass

Max.temperature:

-10 to 150 degree

Available connection:

Clamp, Thread, weld, Flange

Available standard:

DIN, SMS, 3A, ISO

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Prefabricated cable:

2M

Structure:

Prefabricated pin plug



Application
1. Union-type-sight-glass DIN11851/SMS (Standard for dairy products), with transparent circular glass.
2. Threaded nozzle with the welded neck.
3. It is used to view the biologic reactor, blender in laboratory, filter, processing container, pipeline and other closed container.
4. Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.


Technical Feature
DN 65-DN150, 3"-6"
Powered DC 24V
Waterproof hygienic design
Precast cable 2M
Precast pinhole plugs
Charging cable
Prefabricated cable: 2M
Structure
Prefabricated pin plug


Detailed Instruction

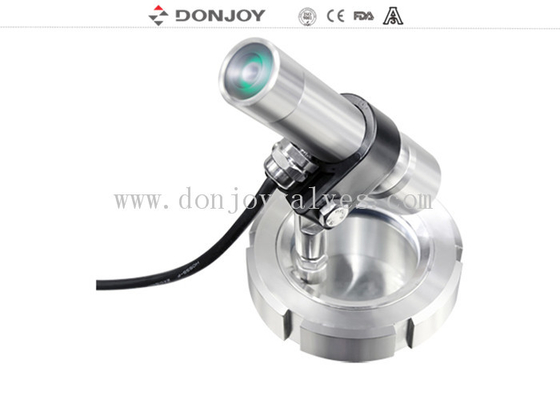

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp 0

Display of Union Type Sight Glass + Lighting

Various selection as below

Union Sight Glass Stainless Steel Sanitary Fittings Union Sight Glass With Lamp 1
