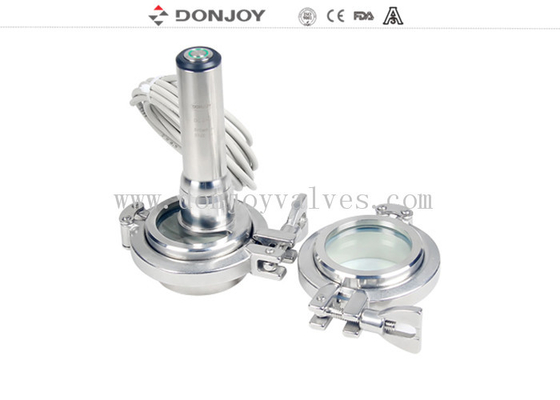

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light

Product Details:

Place of Origin: China
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VSJ400N1

Payment & Shipping Terms:

Minimum Order Quantity: 30PCS
Packaging Details: Carton box, Wooden Case
Delivery Time: 10-30 working days
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 500 sets 20 working days
Contact Now
Detailed Product Description
Name: Flanged Sight Glass SIZE: DN40-DN2000,1.5"-8"
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
Polished: Mirror, Matt Max.temperature: -10 To 120 Degree
High Light:

heavy duty clamp

,

high pressure hose

clamp union sight glass Stainless Steel Sanitary Fittings clamp union light



Quick Detail

Flanged Sight Glass
Size:DN40-DN200,1.5"-8"
Gasket: EPDM,PTFE
Working Pressure:10Bar
Stainless steel shell, DC 24V power supply



Specification

Product Name:

clamp union sight glass Stainless Steel Sanitary Fittings

clamp union light

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

PTFE in accordance with FDA177.2600

Sight glass:

tempered glass

Max.temperature:

-10- 120 degree

Battery:

use high light flashlight, rechargeable lithium battery(220V Battery

for 18650); can use AC220V/110V power supply lighting.

Available connection:

Clamp, Thread, weld, Flange

Available standard:

DIN, SMS, 3A, ISO

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customized. Or as per the request of customers

Delivery details:

10-20 days



Application
Flanged sight glass is comprised of stainless steel frame and glass. Through it, the operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmetic,pharmaceutical and fine chemicals industries.


Technical Features
High light, white cold source/waterproof, explosion-proof design.
Cable power supply AC110V-220V, DC24V
Wireless power supply, one charging can be used for 2-3 months (depending on the frequency of use) Assemble flange with glass by using hexagon socket bolts.


Product drawing

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light 0



Product display

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light 1

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light 2

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light 3
