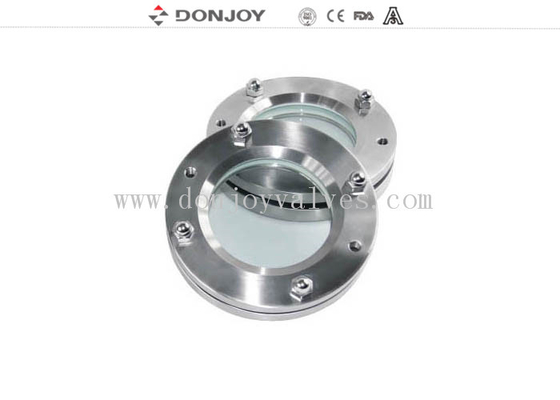

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

    • DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying
    • DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying
    • DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying
  • DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VSJ200N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: DN25-DN150,1"-6"
    Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped,Thread
    Model: Basic Type Lighting: Could Be Selected
    High Light:

    sanitary sight glass

    ,

    SS Sight Glass

    DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying



    Specification

    Product Name:

    DN25 - DN150 basic union type sight glass with tempered glass for medium conveying and observing

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,PTFE,SILICON,etc

    Sight glass:

    tempered glass

    Max.temperature:

    120 degree

    Battery:

    use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

    Availably connection:

    Clamp, Thread, weld, Flange

    Availably standard:

    DIN, SMS, 3A, ISO

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Type:

    Basic model

    Function:

    For medium conveying and observing



    Quick Details
    Sight Glass
    Size:DN25-DN150,1"-6"
    Type: DC24V,NO.5 Battery
    Gasket: EPDM,PTFE
    Working Pressure:10Bar


    Application
    A tubular sight-glass is comprised of stainless steel frame and glass.
    Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries


    Function
    For medium conveying and observing


    Structure

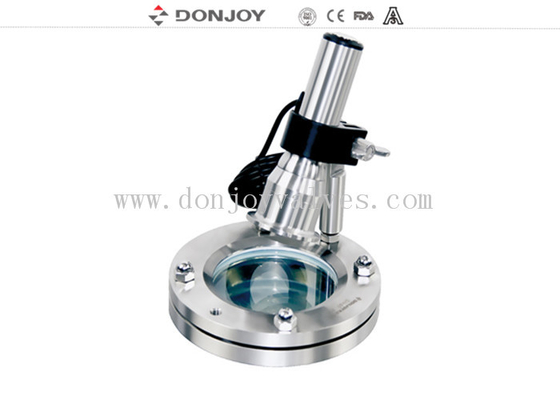

    Basic structure (lighter is optional)


    Feature
    Full bore Design
    360degree viewing angle
    Can be used in vertical or horizontal position
    Call with

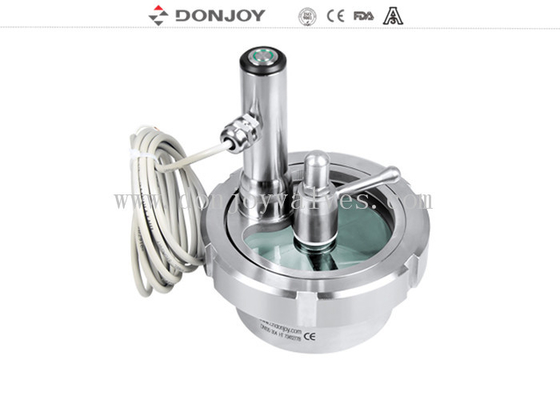

    light and wipper

    Drawing

    DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 0


    Display

    DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 1
