DN65 Stainless Steel Sight Glass with led light of charged model waterproof explosion proof

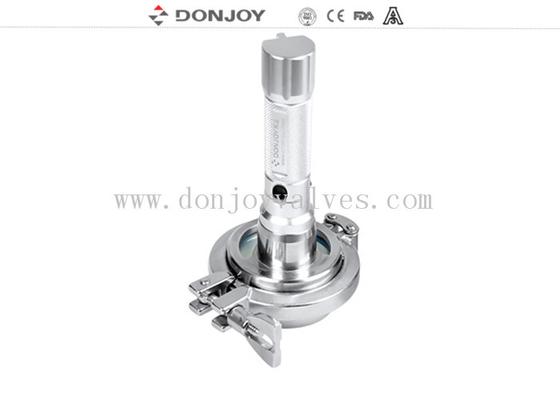

Large Image : DN65 Stainless Steel Sight Glass with led light of charged model waterproof explosion proof

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	10-30 working days
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Name:	Clamp Union Sight Glass	SIZE:	1.5"-4",DN40-DN100
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread
Polished:	Mirror, Matt	Temperature:	-10 - 150 Degree
Feature:	Waterproof, Explosion Proof	Packing:	According To Order
Highlight:	sanitary sight glass , stainless sight glass

DN65 Stainless Steel Sight Glass with led light of charged model waterproof explosion proof

Quick Detail

Clamp Union Sight Glass with led lighter

Size: DN50-DN150, 2"-6"

Type: Union Type, AC220/110V

Gasket: EPDM, PTFE

Working Pressure: vacuum 10Bar

Waterproof, explosion-proof, hygienic design

Specification

Product Name:	DN65 304 316 clamp union type sight glass with led light of charged model of waterproof explosion proof
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 150 degree
Power:	Charging mode, charging by one time could be used for 2 - 3 months
Structure:	Sight glass + lighter
Availably connection:	Clamp, Thread, weld, Flange
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A, PED, FDA, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc

Application
Clamp Union-type-sight-glass DIN11851/SMS (Standard fir dairy products),with transparent circular glass. Threaded nozzle with the welded neck.It is used viewing the biologic reactor, blender in laboratary, filter,processing container, pipeline and other closed container.Especially apply in pharmacy, food and beverage processing,such as the brewery, dairy.

Power
Charging mode, charging by one time could be used for 2 - 3 months

Structure
Sight glass + lighter

Detailed drawings

DN65 Stainless Steel Sight Glass with led light of charged model waterproof explosion proof 0

DN65 Stainless Steel Sight Glass with led light of charged model waterproof explosion proof 1
