DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

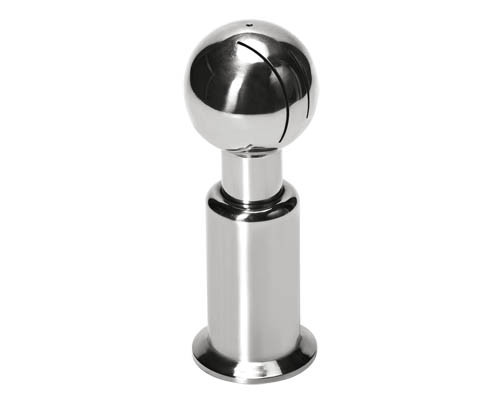

Large Image : DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	Size:	1-2.5"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread,pin Connection
Polished:	Mirror, Matt	Lubrication:	Cleaning Medium
Highlight:	stainless steel spray ball , spray ball for tank cleaning

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

Quick Detail

Stainless steel Revolving Cleaning Ball, Revolve Cleaning Ball, Sanitary Cleaning Ball

Material: SS304, SS316

Specification:1"-2.5", or required

Connection mode : clamped,welded,threaded,bolted

Specification

Product Name:	DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	2-10 bar
Suggest Pressure:	4bar
Availably size:	3/8"-2.5"
Connection way:	thread BSP,clamp Pin, Welded
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Clamped Rotary Cleaning Ball

Q	Size	OD	T	Ht	Hs	2Bar
Q	Size	OD	T	Ht	Hs	Spray Radius(M)	Cleaning Radius(m)	Flow Rat(m³/H)
28	1/2”	12.9	25.4	101.2	94.2	2.5	1.1	2.5
	3/4”	19.2	25.4	101.2	94.2	2.8	1.2	2.8
	1”	25.7	50.5	101.2	94.2	2.8	1.3	3.0
45	3/4”	19.2	25.4	137.	125.2	3.0	2.2	6
	1”	25.7	50.5	137.2	125.2	3.4	2.5	6.5
	1.25”	32.1	50.5	137.2	125.2	3.5	2.6	7
65	1.25”	32.1	50.5	175.7	159.7	4.0	3.0	12
	1.5”	38.4	50.5	175.7	159.7	4.2	3.1	15
	2”	51.1	65	177.7	161.7	4.5	3.2	16
75	1.5”	38.4	50.5	204.7	184.7	6.0	4.1	18
	2”	51.1	64	204.7	194.7	6.5	4.2	22
	2.5”	63.8		205.7	185.7	7.0	4.4	25

Export Documents

1. 3.1 Certificate ( Quality Material Certificate)

2. Country of Original ( CO, FORM E,Form A..)

3. Surface Report Certificate

4.Packing List

5.Commercial Invoice

Packing and Delivery :

Packing Details:1st step:washing and cleaning; 2nd step:shrink wrap; 3rd step: carton packing ; 4th step:standard exported plywood case package Besides,We will sign on the surface of eah carton of the customer's order number,quantity pcs per carton,size and etc.

Delivery Detail:7-15Days

Payments : T/T, Westerm Union, L/C Credit Card

If you need morning information,Please do not hesitate to contact us.
