Extracting Sample Valves Biological pharmacy sanitary grade manual aseptic

Extracting Sample Valves Biological pharmacy sanitary grade manual aseptic

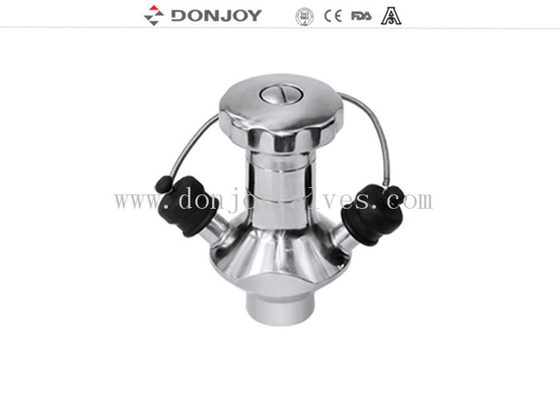

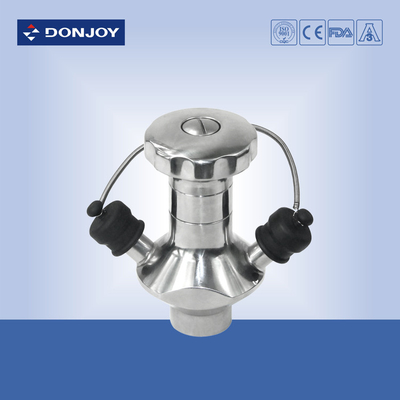

The aseptic sampling valve is designed for sterilization before and after each sampling.

Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the
lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

Standard design:
the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

Handle:

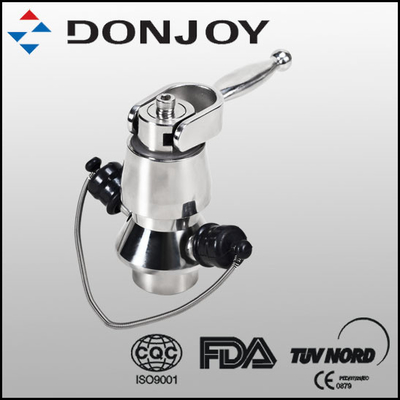

(1) Turning handle (2) removable key

Application:
The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .

Specification



Technical features
It could bear higher pressure; shorter height of valve; could resist water hammer and positioner could be installed on side way to realize automatic flow regulation.

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Certificates
3A/54-02 (1580),
PED/97/23/EC,
FDA.177.2600, ISO

Optional
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting

Packaging and delivery details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Usually within 20 days after receiving T/T down payment.

Drawing
