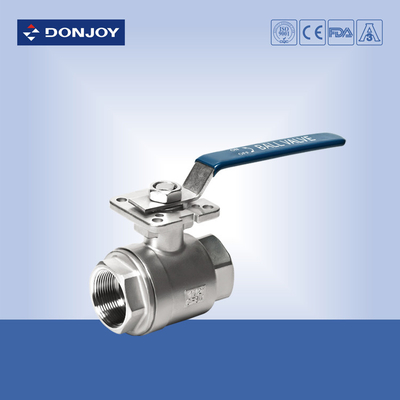

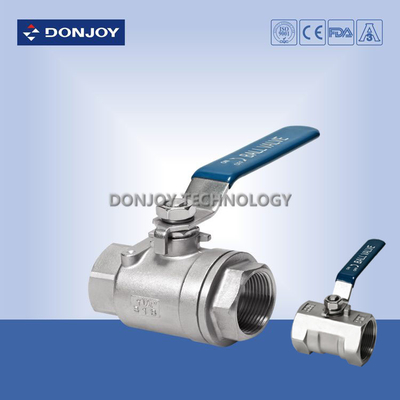

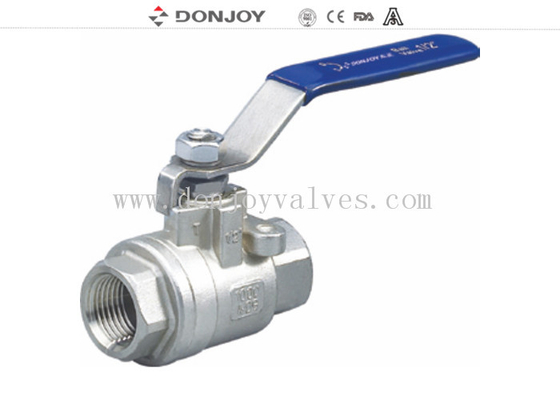

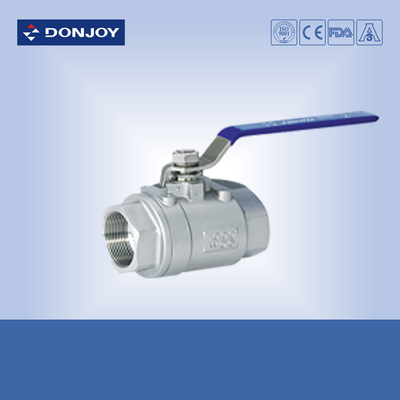

FDA / ISO SS304 Two Peice Ball valve With Female Thread Connection

FDA / ISO SS304 Two Peice Ball valve With Female Thread Connection

    • FDA / ISO SS304 Two Peice Ball valve With  Female Thread Connection
    • FDA / ISO SS304 Two Peice Ball valve With  Female Thread Connection
    • FDA / ISO SS304 Two Peice Ball valve With  Female Thread Connection
    • FDA / ISO SS304 Two Peice Ball valve With  Female Thread Connection
  • FDA / ISO SS304 Two Peice Ball valve With  Female Thread Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: 2 Pcs Industrial Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic ,Manual Material: 304/316L
    Connection: Welded, Clamped, Thread,DIN,SMS Application: Industrial Usage,water Industrial Usage
    High Light:

    electric ball valve

    ,

    pneumatic ball valve

    FDA / ISO SS304 Two Peice Ball valve With Female Thread Connection



    Detail:

    2pcs ball valve

    Connection: Clamped, Thread, Welding,SMS,DIN

    Standard: DIN,3A,SMS,ISO,IDF, RJT..

    Ball type: Straight through

    Operation: manual



    Specification

    Product Name: SS304,Two Peices industrial Ball valve With Female Thread Connection
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 120 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, DIN,SMS
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric, Actuator
    Certificate: FDA,CE,3A,ISO
    Packaging details standard export package or customerized
    Delivery details usually within 20 days after receiving T/T down payment



    Applications:

    The series of ball valve is mainly used in industrial fields of gasoline, chemical, hydraulic, food and beverage, etc.

    The structure of the ball valve: One piece, Two pieces, Three piece and Flanged type, etc.



    Technical Feature

    Pressure: PN1.6-6.4Mpa, Class 1.5/300, 10K/20K
    Strength testing pressure: PT1.5PN
    Applicable media:
    Z41H-(16-64)C Water: Oil, Gas
    Z41H-(16-64)C Nitric Acid
    Z41H-(16-64)C Acetic Acid
    Applicable temperature: -40-180 degree



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
