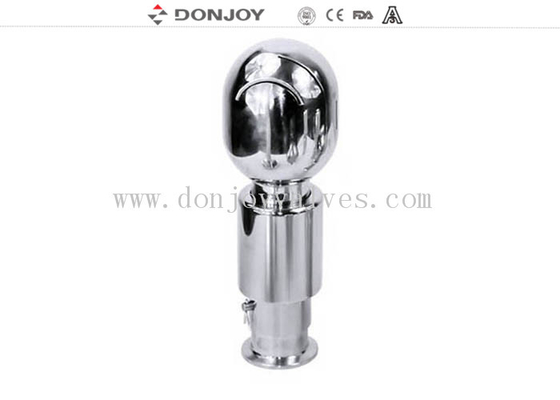

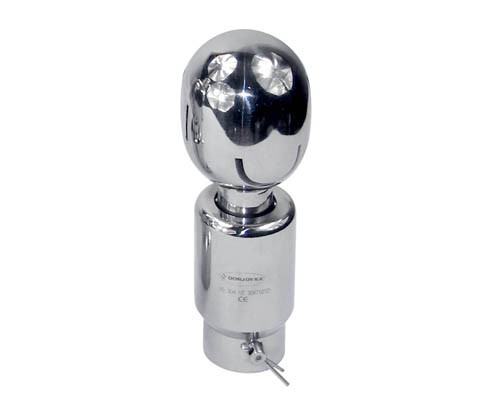

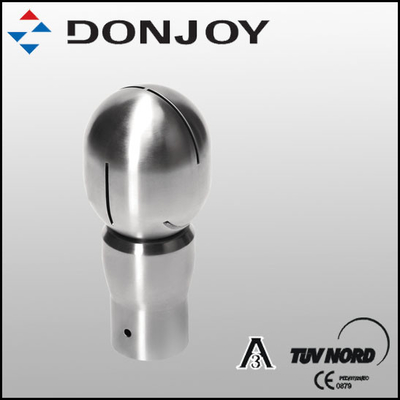

Fermentation Round Rotary Stainless Steel Spray Ball Clamp Pin Connection

Large Image : Fermentation Round Rotary Stainless Steel Spray Ball Clamp Pin Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1/2"-3"
Stanadard:	DIN,3A,SMS,ISO	Max Temperature:	95℃
Polished:	Mirror, Matt
Highlight:	stainless steel spray ball , spray ball for tank cleaning

Fermentation Round Rotary Stainless Steel Spray Ball Clamp Pin Connection

Quick Detail

1. Name: stainless steel rotary spray ball

2. Material: ss304,ss316L

3. Standard: 3A. DIN. SMS.ISO.IDF.RJT.DS.BS.BPE

4. Size:1/2"-8" or as required

5. Connection: clamped, welded, male, female, bolted

6. Certificate: ISO9001:2000, 3.1 Materials Certificate, Surface Certificate

7. Packaging: Standard exportation package or packed on the basis of customers' requirements

Specification

Product Name:	Fermentation Round Rotary Stainless Steel Spray Ball Clamp Pin Connection
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Availably size:	1"-2.5"
Connection way:	thread BSP,clamp Pin, Welded
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Application:used to spray strongly and clean inside of the tank, generally, in field of food-processing, beverage,beer,pharmaceutical industries.

Slection Table of Pin/Bolt Cleaning Ball

Q	INCH		DIN		Ht	Hs	C	2Bar
Q	Size	ID	Size	ID	Ht	Hs	C	Spray Radius(M)	Cleaning Radius(m)	Flow Rat(m³/H)
28	1/2”	12.9	DN10	12.2	90.5	93.5	7	2.5	1.1	2.5
	3/4”	19.2	DN15	18.2	93.5	86.5	10	2.8	1.2	2.8
	1”	25.7	DN20	22.2	93.5	86.5	10	2.8	1.3	3.0
45	3/4”	19.2	DN20	22.	128.5	116.5	10	3.0	2.2	6
	1”	25.7	DN25	28.3	128.5	116.5	10	3.4	2.5	6.5
	1.25”	32.1	DN32	34.3	128.5	116.5	10	3.5	2.6	7
65	1.25”	32.1	DN32	34.3	165.5	149.5	10	4.0	3.0	12
	1.5”	38.4	DN40	40.3	169.5	153.5	14	4.2	3.1	15
	2”	51.1	DN50	52.3	172.5	156.5	14	4.5	3.2	16
75	1.5”	38.4	DN40	40.3	197.5	177.5	14	6.0	4.1	18
	2”	51.1	DN50	52.3	197.5	177.5	14	6.5	4.2	22
	2.5”	63.8			201.5	181.5	14	7.0	4.4	25

Drawing

Packing and Delivery :

Packing Details:1st step:washing and cleaning; 2nd step:shrink wrap; 3rd step: carton packing ; 4th step:standard exported plywood case package Besides,We will sign on the surface of eah carton of the customer's order number,quantity pcs per carton,size and etc.

Delivery Detail:7-15Days

Payments : T/T, Westerm Union, L/C Credit Card

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the Sample Cleaning

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you need morning information,Please do not hesitate to contact us.
