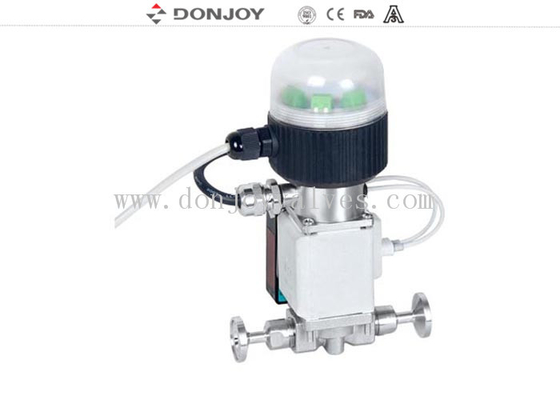

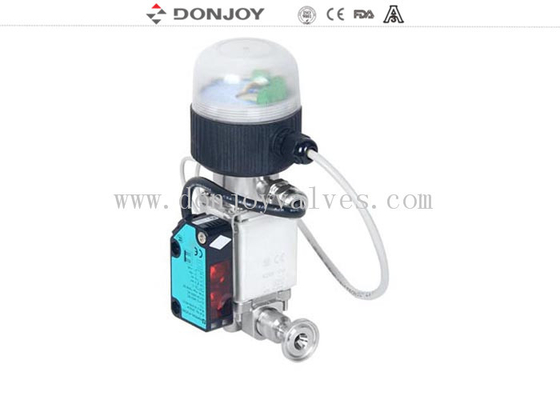

IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve

IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve

    • IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve
    • IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve
  • IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Materials: 316L Operation: Manual
    Connection Mode: Welding Ends Structure: Hand Whashing Valve
    Temperature Of Media: <80℃
    High Light:

    Infrared Sensor Hand Washing Valve

    ,

    SS316L Hand Washing Valve

    ,

    IP67 Hand Washing Valve

    DONJOY new infrared sensor switch valve stainless steel hand washing valve DC24V



    Specifications:

    Product Name:

    Hand washing valve

    Valve Body Material:

    SS316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    MaxWorking Pressure:

    3Bar

    Max.Working Temperature:

    < 80℃

    Induction distance

    0-3 meters

    Power supply

    AC220V/110V,DC24V

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Interface mode

    Clamp,thread,weld,nut,etc

    Protection level

    IP67



    Application

    This valve is typically used in clean areas, especially in an induction valve that prohibits direct hand

    contact with the faucet. The valve uses an infrared photoelectric to sense the human body and then

    opens the valve.If the human body is not sensed ,the valve automatically closes.


    IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve 0

    IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve 1



    IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve 2

    IP67 3 Bar SS316L Infrared Sensor Hand Washing Valve 3
