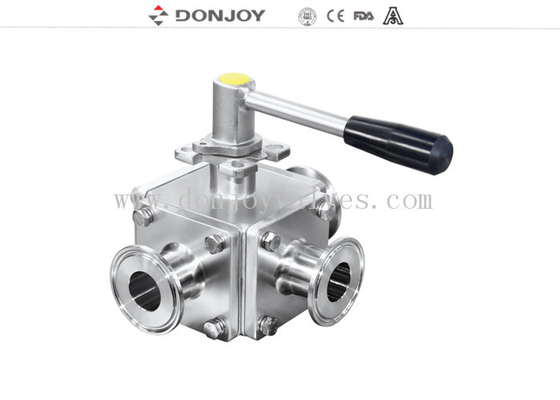

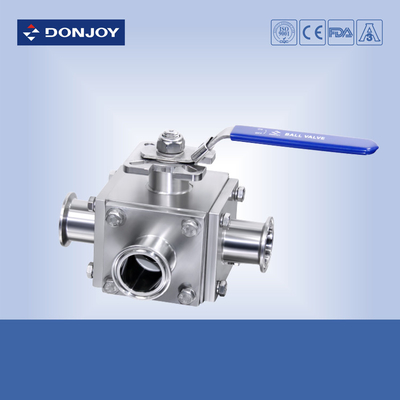

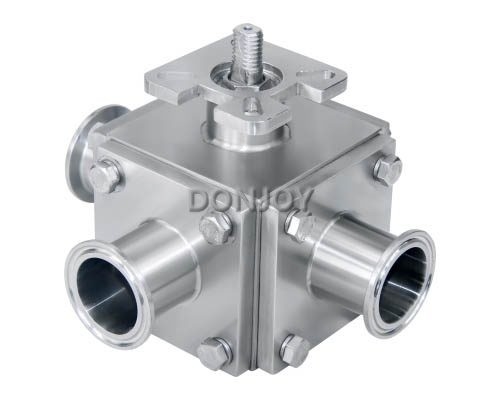

Manual 3 way Non-retention full port ball valve with plastic handle
Description:
Materials: AISI304, SUS316L
Ball Structure: 3 Way( L type or Type)
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Seal Materials : PTFE
Machine Processing: CNC machine from Japan for processing
Type of Non-rentention ball valve
1. Manual three-way non-retention ball valve
2. Pneumatic three-way non-retention ball valve with positioner
3. Pneumatic three-way non-retention ball valve with C-TOP
4. Pneumatic three-way non-retention ball valve With Mini C-TOP
5. Pneumatic three-way non-retention ball valve With Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: |
Manual 3 way Non-retention full port ball valve with plastic handle |
| Valve Body Material: |
SS304 or SS316L |
| Seal Material: |
PTFE |
| Max. Working Pressure: |
10Bar |
| Max. Working Temperature: |
150 degree C |
| Availably size: |
DN25-DN100 or 1" - 4" |
| Availably connection: |
Weld,Clamp,Thread, Flange |
| Availably standard: |
DIN,SMS,3A |
| Ball Type: |
Directly |
| Operated: |
Manual,Pneumatic,Electric,control Head |
| Certificate: |
FDA,CE,3A,ISO |
Applications:
The hygienic design of the valve is widely used in the field of food processing, beverages, fruit juice, wine, biopharmaceutical and vary flexible body combinations. For example, L-port or T-port can be interchangeable on-site inlet, outlet to be any combination of changes can guarantee dead angle, no retention.
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design.
Question:
1. How long it is to make small quantity or samples
Answer: Samples for test is allowed. And it takes about 1-2 days for our standard manhole.
2. Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization
3. How long of the warantty
Answer: About one year except the seal
If you need more informations,Please do not hesitate to contact us.
