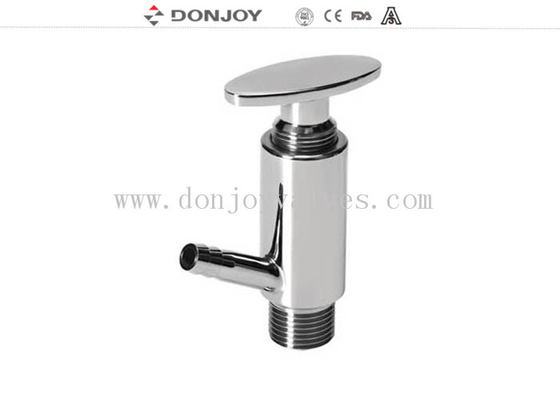

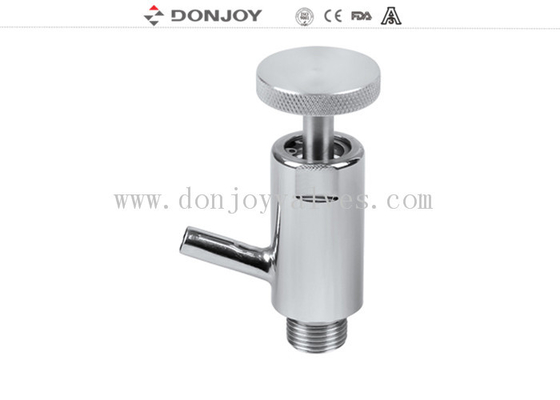

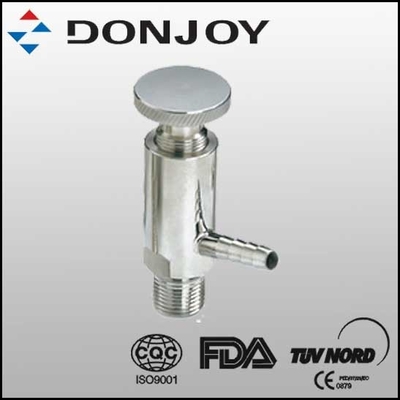

Manual Sanitary Sample Valve Thread Connection Ra≤0.8μm / Ra≤0.5μm

Manual Sanitary Sample Valve Thread Connection Ra≤0.8μm / Ra≤0.5μm

    • Manual Sanitary Sample Valve  Thread Connection Ra≤0.8μm / Ra≤0.5μm
    • Manual Sanitary Sample Valve  Thread Connection Ra≤0.8μm / Ra≤0.5μm
    • Manual Sanitary Sample Valve  Thread Connection Ra≤0.8μm / Ra≤0.5μm
  • Manual Sanitary Sample Valve  Thread Connection Ra≤0.8μm / Ra≤0.5μm

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO MODEL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN CASE, CARTONS
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 12.7mm,1/2"mm
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
    Polished: Mirror, Matt
    High Light:

    Sample valves

    ,

    sampling valve stainless steel

    Manual Sanitary Sample Valve Thread Connection Ra≤0.8μm / Ra≤0.5μm



    Quick Detail

    Sample Valve

    Size:12.7mm,1/2",3/8",1/2",3/4"

    Type:  Manual

    Gasket: EPDM,PTFE

    Working Pressure:6Bar

    Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm



    Specification

    Product Name:

    Sanitary Stainless  Sample  valve  Thread Connection,SS304/ss316L

    Material:

    AISI304, AISI316L

    Size:

    1/2"

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded,Clamped

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Sanitary Sampling Valves Application

    Donjoy Sampling valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain. DONJOY Sanitary Sampling Valves are available with butt weld or sanitary clamp end connections with hose barb discharge as standard

    Sanitary Sampling Valves Technical Specification

    This sample valve is used for low viscosity materials, such as water, beer, wine, fluid milk, and so on. When rotating the handle wheel clockwise, the valve will be open for sampling. When rotating the handle wheel anti-clockwise, the valve will be closed.



    Drawing

    Manual Sanitary Sample Valve  Thread Connection Ra≤0.8μm / Ra≤0.5μm 0

    Tag : Donjoy Valve, Sampling valve, Sanitary valves
