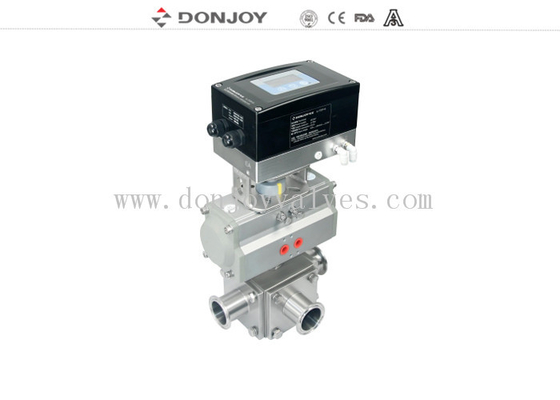

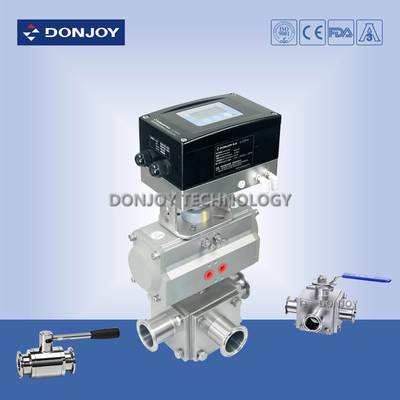

Pneumatic three-way Sanitary Ball Valve with intelligent positioner IL-TOP
Description:
Size: 1/2"-4", DN15-DN100
Temperature:-20 C to 150 C (standard) -30 C to 200 C (option)
Pressure:10-30 bar (depending on seal material and temperature)
Operating modes: manual, electric, pneumatic
Device Net Bus
Air/Spring, Air/Air
Specification
| Product Name: |
Pneumatic three-way non-retention ball valve with intelligent positioner IL-Top |
| Valve Body Material: |
SS304 or SS316L |
| Seal Material: |
PTFE |
| Max. Working Pressure: |
10Bar |
| Max. Working Temperature: |
150 degree C |
| Availably size: |
DN25-DN100 or 1" - 4" |
| Availably connection: |
Weld,Clamp,Thread, Flange |
| Availably standard: |
DIN,SMS,3A |
| Ball Type: |
T-port or L-port |
| Operated: |
Manual,Pneumatic,Electric,control Head |
| Certificate: |
FDA,CE,3A,ISO |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires.
The three way non rentention ball valve has very flexible xombination. You can change the L-port and T-port at site. And the any conbibatiob of changes of inlet and outlet can guarantee no dead angle, no retention.
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
