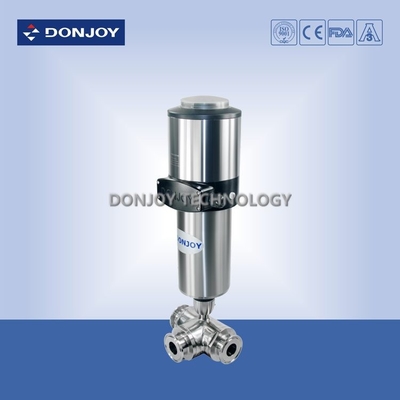

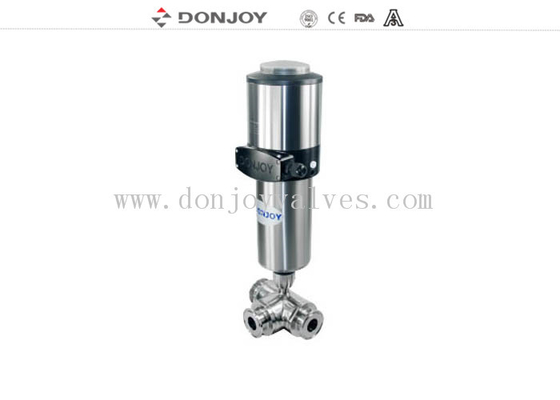

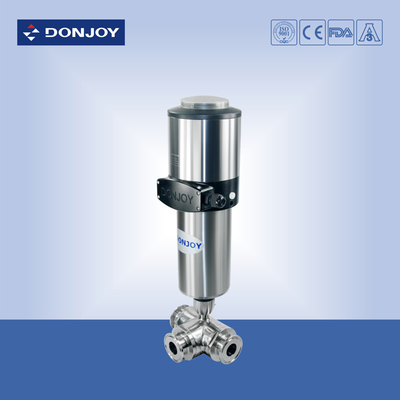

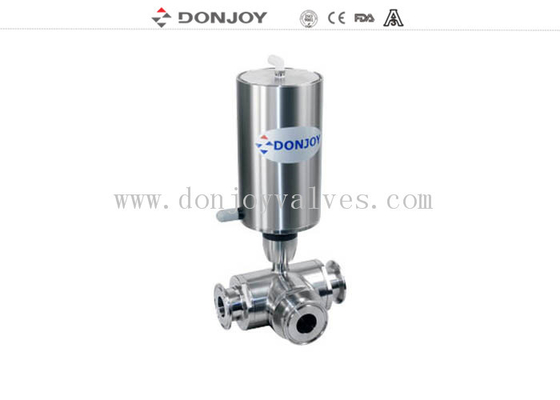

Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50
Detail:
Manual Ball Valve, Pneumatica ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/L type
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Materials: AISI304, SUS316L
Type of valves: Directly Ball Valve, Three piece ball valve, Three way ball valve
Ball : T port, L Port
Specification
| Product Name: |
Pnuematic three link ball valve with C-TOP/Positioner,DC 24V ,DN50 |
| Valve Body Material: |
SS304 or SS316L |
| Seal Material: |
PTFE |
| Max. Working Pressure: |
10Bar |
| Max. Working Temperature: |
120 degree C |
| Availably size: |
DN25-DN100 or 1" - 4" |
| Availably connection: |
Weld,Clamp,Thread, Flange |
| Availably standard: |
DIN,SMS,3A |
| Ball Type: |
Directly |
| Operated: |
Manual,Pneumatic,Electric,control Head |
| Certificate: |
FDA,CE,3A,ISO |
Applications:
It is widely used in beverage, brewing, oil refinery, cosmetic, chemical Industrial
Design and Feature
Free of Maintenances
compact and portable
small operating torque
gasket complies with PTFE FDA 177.2600
Hand lever can be installed on the side of the valve body, no matter of the flow direction
It can be installed with pneumatic and electrick acuators.
With Cleaning and drainage port
Delivery time: About 7 days for the samll quantity. And 15-20 days for the mass quantity
Term of conditions: EXW, FOB NINGBO/SHANGHAI, CIF,CFR
Payments Term: T/T,L/C, Western Union.
