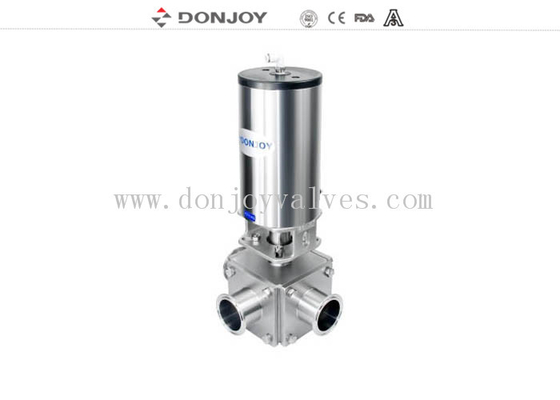

PTFE Seal Welded L Port SS316L DN10 Sanitary Ball Valve

Stainless steel Sanitary Three way non retention Ball Valve with L port

Detail:

Manual Ball Valve, Pneumatica  ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/L type

Connection: Clamped, Thread, Welding etc

Certificate: PED, 97/23EC

Specification

Applications:

The hygienic design of the valve is widely used in the field of food processing, beverage, fruit juices, wine, biopharmaceutical and very flexible body combinations for example, L-Port or T-Port can be interchangeable on-site inlet, outlet to be any combination of change can guarantee dead angle, no retention.

Design and Features

Free of maintenances

Compact and portable

Small operating torque

Gasket complies with PTFE FDA 177.2600

Hand lever can be installed on the side of valve body, no matter of the flow direction.

Connection ends: thread, clamp, weld, flange, DIN, SMS,RJT,FIL

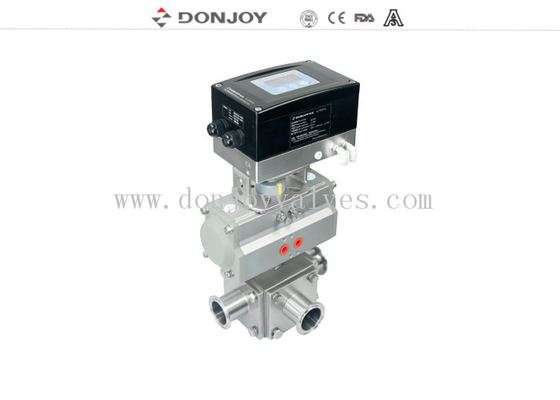

It can be installed with pneumatic and electric actuators.

The part contacted with media is AISI 304/316L

Other parts AISI 304

Certifications: PED, 97/23EC

Drawing
