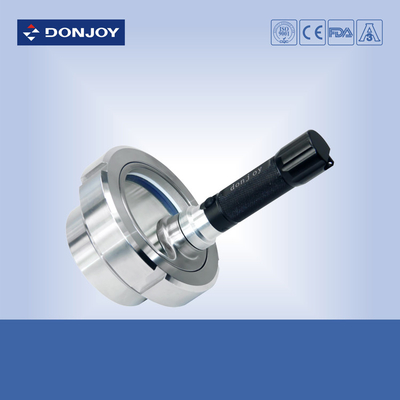

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

    • Quality DN150 Stainless Steel Union Sight Glass with the dust wiper
    • Quality DN150 Stainless Steel Union Sight Glass with the dust wiper
  • Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VSJ300Y1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Name: DN100 Union Sight Glass SIZE: DN25-DN150/1"-6"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
    Pressure: Vacuum 10 Bar Temperature: -10 To 80 Degree
    Operation Mode: Charging Mode Structure: Union Sight Glass + Lighter + Wiper
    High Light:

    sanitary sight glass

    ,

    stainless sight glass

    Quality DN150 Stainless Steel Union Sight Glass with the dust wiper



    Quick Detail

    DN150 union Sight Glass

    Size:DN25-DN150, 1"-6"

    Type:  Union Type

    Gasket: EPDM,PTFE

    Working Pressure:vacuum 10Bar

    Material: 304(1.4301), 316L(1.4404)



    Specification

    Product Name:

    Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,PTFE,SILICON,etc

    Sight glass:

    tempered glass

    Max.temperature:

    -10 to 80 degree

    Available connection:

    Clamp, Thread, weld, Flange

    Available standard:

    DIN, SMS, 3A, ISO

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Operation mode:

    Charging mode

    Structure:

    union sight glass + lighter + wiper



    Application

    Union-type-sight-glass DIN11851/SMS (Standard fir dairy products), with transparent

    circular glass. Threaded nozzle with the welded neck.It is used viewing the biologic reactor, blender in laboratary, filter, processing container, pipeline and other closed container.

    Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.



    Technical Features

    One charge can be used for 2-3 months( depending on frequency of use)

    Waterproof, explosion-proof, hygienic design



    Various Type

    Quality DN150 Stainless Steel Union Sight Glass with the dust wiper 0
