Sanitary Stainless Steel 45m3/H Tank Spray Balls

Large Image : Sanitary Stainless Steel 45m3/H Tank Spray Balls

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	820$/pc -1200$/pc
Packaging Details:	Carton, Wooden Case
Delivery Time:	5-30 working days
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

SIZE:	1",1.5",2"	Brand:	DONJOY
Stanadard:	DIN,3A,SMS,ISO,BSP	Connection:	Female Thread, Clamp Ends
Polished:	Mirror, Matt	Material:	Stainless Steel
Highlight:	45m3/H Tank Spray Balls , sms Tank Spray Balls , 4mm Tank Spray Balls

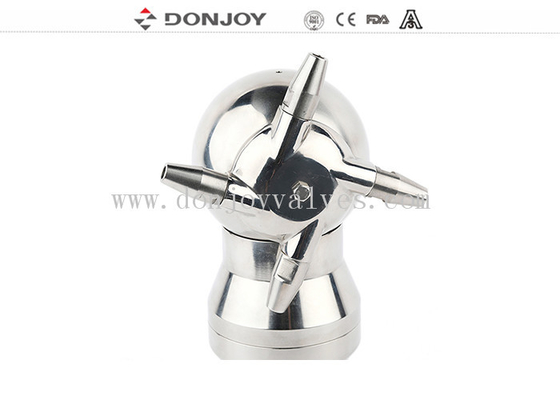

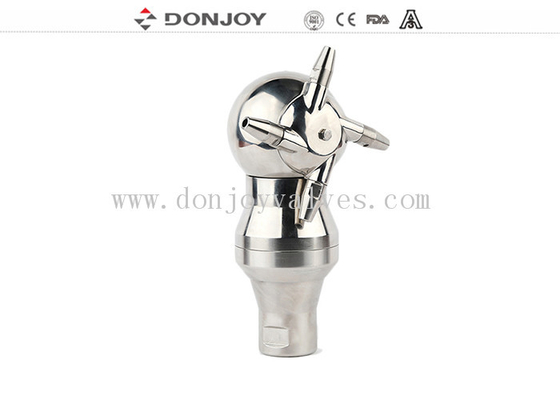

DONJOY sanitary stainless steel sus316 1" tank cleaner rotary 360 degree cleaning ball 45m3/h

Quick Detail

Cleaning Ball

Nozzle Size:4mm,5mm, 6mm,7mm,8mm

Connection: 1",1.5",2" BSP or NPT Thread,Clamp

Materials : 1.4404 ( SS316L)

Specification

Product Name:	rotary jet head 360°,tank cleaner
Material:	SUS316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Available size:	1.5"-DN40
Connection way:	thread BSP, clamp
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Drawing

Sanitary Stainless Steel 45m3/H Tank Spray Balls 0

Sanitary Stainless Steel 45m3/H Tank Spray Balls 1

Sanitary Stainless Steel 45m3/H Tank Spray Balls 2

Sanitary Stainless Steel 45m3/H Tank Spray Balls 3

Performance Curve

Sanitary Stainless Steel 45m3/H Tank Spray Balls 4

Sanitary Stainless Steel 45m3/H Tank Spray Balls 5

Sanitary Stainless Steel 45m3/H Tank Spray Balls 6

Typical Application

1.Fixed installation CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding

Operating Principle

1. Rotary injector is Hygenic tank cleaner, with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self-cleaning function, internal is completely cleaning.

Technical Parament

1. Flow: 4-45T/H

2.Inlet Pressure:4-10Bar

3.Suggest Temperature: 95 Degree

4.Connection: BSP,1.5"-DN40

5.Gasket Materials: PTFE

6.Lubrication: Cleaning Medium

Common application:

Cleaning tanker trucks
Cleaning rail cars
Cleaning petrochemical reactors
Cleaning residues from chemical tanks
Cleaning sewage tanks
Cleaning silt from water supply tanks
Cleaning pharmaceutical tanks
Cleaning food processing tanks
Cleaning pulp storage/processing tanks
Cleaning blenders
Cleaning storage tanks
