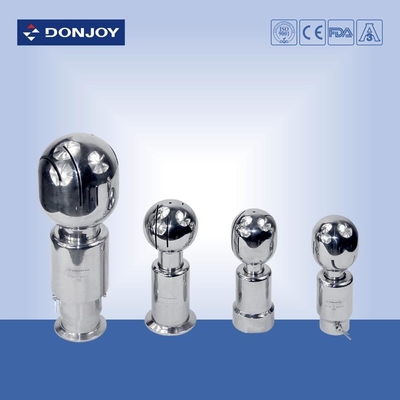

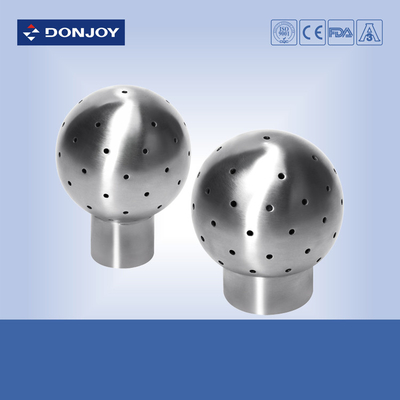

SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection

SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection

    • SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection
    • SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection
    • SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection
  • SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1/2"-3"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,pin Connection
    Polished: Mirror, Matt Material: SS304,SS316L
    High Light:

    spray balls stainless steel

    ,

    stainless steel spray ball

    SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection



    Quick Detail

    Cleaning Ball

    Type: 360 Degree, 180 Degree, 270 Degree

    Connection: Thread, Pin, Weld, Clamp

    Materials : SS304,SS316L



    Specification


    Product Name:
    Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection
    Material: SUS304/316L;PTFE
    Flow: 4-45m³/h
    Inlet Pressure: 4-10 bar
    Suggest Pressure: 6 bar
    Availably size: 1"-2.5"
    Connection way: thread BSP,clamp Pin, Welded
    Max temperature: 95°C
    Max environment temperature: 140°C
    Application Scope: Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
    Typical application: process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
    Advantages: Self-cleaning; low liquid consumption; heath design
    Typical cleaning methods: fixed installation CIP system
    Packaging Details: Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
    Delivery details: Usually within 20 days after receiving T/T down payment.





























































    Typical Application

    Cleaner series products are mainly used to spray strongly and clean inside of tank,generally, in field of food-processing, beverage,Beer, Pharmaceutical Industries

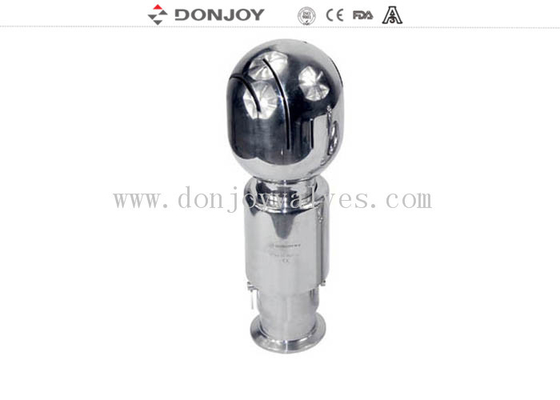

    Rotary cleaning ball: Ball is Elliptical and Round. Jet orifice is flat slot shape.



    Spray Angle

    SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection 0=

    Size Table for Thread rotary cleaning Ball



    Q G Ht Hs 2Bar
    Spray Radius(M) Cleaning Radius(m) Flow Rat(m³/H)
    28 3/8" BSP 87.5 80.5 2.5 1.1 2.5
    1/2" BSP 90.5 83.5 2.8 1.2 2.8
    3/4" BSP 94.5 87.5 2.8 1.3 3.0
    45 1/2" BSP 122.5 110.5 3.0 2.2 6
    3/4" BSP 126.5 114.5 3.4 2.5 6.5
    1" BSP 130.5 118.5 3.5 2.6 7
    65 1" BSP 163.5 147.5 4.0 3.0 12
    1.25" BSP 165.5 149.5 4.2 3.1 15
    1.5" BSP 168.5 152.5 4.5 3.2 16
    75 1.25" BSP 191.5 171.5 6.0 4.1 18
    1.5" BSP 194.5 174.5 6.5 4.2 22
    2" BSP 202.5 182.5 7.0 4.4 25

























































    Drwaing

    SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection 1

    SS316L 2" BSP Thread Elliptial Spray Ball For Tank Cleaning Welded Connection 2





    Express Shipments agent: TNT, UPS, FEDEX, DHL.
    Packing: Cartons, Wooden Case
    Delivery time : About 7 days. If bigger quantity can check it again.

    If you need more information,please do not hesitate to contact us.
