Stainless Steel Lobe Rotary Pump Fit Regulating Syrup Candy Chocolate Pharmacy

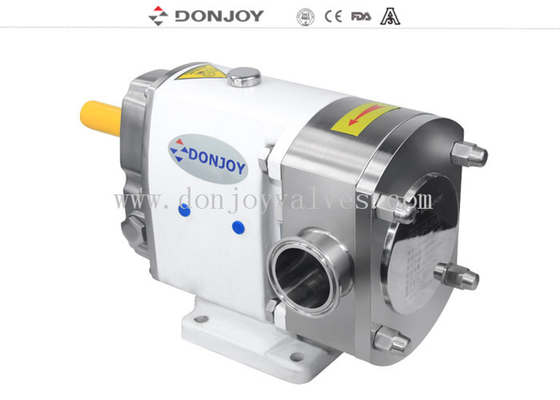

Large Image : Stainless Steel Lobe Rotary Pump Fit Regulating Syrup Candy Chocolate Pharmacy

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	TUL/TUR

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Materials:	Sanitary Lobe Pump	Size:	TUL / TUR 20 - 125
Operation:	Motor	Mechanical:	SIC / SIC / EPDM
Connection:	Clamped	Pressure:	1- 15 Bar
Medium:	Fulid Etc.	Feature:	Could Be With Frequency Converter
Highlight:	self priming pump , high pressure pumps

SS316L stainless steel TUL-20 lobe rotary pump for regulating syrup candy chocolate pharmacy

Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
13. Motor Type B5 motor frequency 50HZ, 60HZ
14. Voltage(v)220-240, 360-400, 420-460, 630-690

Technical feature
A .Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C.Fixed speed output transmission

Specifications

Product Name:	TUL-20 Lobe rotary pump
Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	SIC/SIC/EPDM (Standard, FDA approval)
Max. Flow:	62m3/h / 395 GPM
Max.pressure:	12bar/ 174PSI
Max. rev:	1450 rmp
Rotor Type:	2-leaves, 3-leaves, butterfly, signal butterfly
Installation	Could be installed with frequency converter
frequency converter	Optional
Mechanical seal:	SIC/SiC/EPDM(Standard)
Voltage:	110V, 220V, 380V
Motor:	ABB,SEW, 50hz/ 60hz
Surface treatment:	Inner polished and Sandblast outside
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc

Design and Features

1. Horizontal TUL, Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard
Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Principles

1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

Competitive Advantage

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
