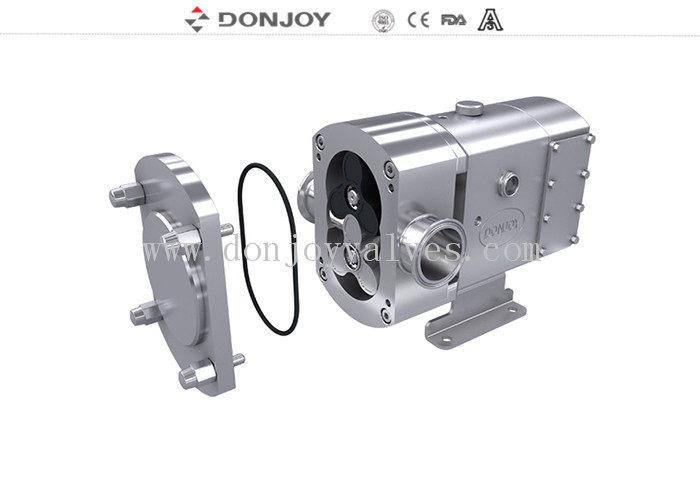

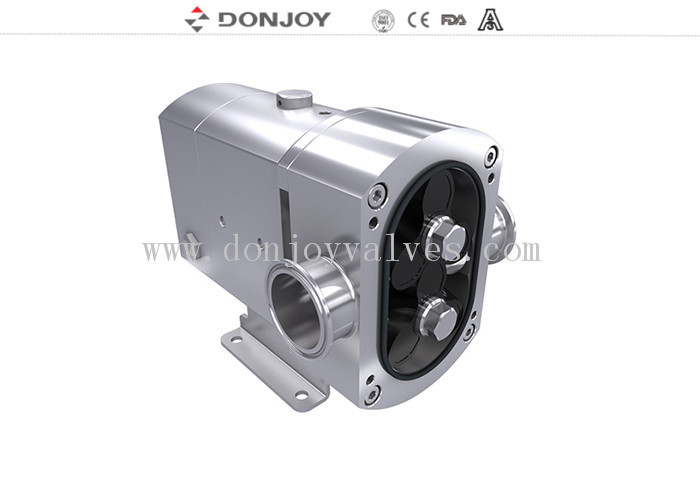

SS316L STUL-25 Rotary lobe Pump with selfpriming fuction for flow regulating
Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
13. Motor Type B5 motor frequency 50HZ,60HZ
14. Voltage(v)220-240,360-400,420-460,630-690
Techinical features
A . Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C. Fixed speed output transmission
Specifications
|
Product Name:
|
SS316L TUL-100 Mechanical variable Lobe pump
|
|
Material:
|
SS304 / SS316L / 1.4301 / 1.4404
|
|
Seal Material:
|
SIC / SIC / EPDM (Standard, FDA approval)
|
|
Max. Flow:
|
62m3/h / 395 GPM
|
|
Max.pressure:
|
12bar / 174PSI
|
|
Max. working temperature:
|
150 C / 302 F
|
|
Max. rev:
|
1450 rmp
|
|
Rotor Type:
|
2-leaves, 3-leaves, butterfly, signal butterfly
|
|
Mechanical seal:
|
SIC / SiC / EPDM(Standard)
|
|
Motor power:
|
1.5kw, 2.2kw, 3kw….11kw
|
|
Feature
|
Movable
|
|
Voltage:
|
110V, 220V, 380V
|
|
Motor:
|
ABB,SEW, 50hz / 60hz
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Available connection:
|
Clamp, Thread Butt weld, Flange
|
|
Available standard:
|
DIN, SMS, 3A, RJT, ISO / IDF
|
|
Application scope:
|
Dairy, food, beverage, pharmacy, cosmetic, etc
|
| Delivery details: |
Normally within 20 days after receiving T/T down payment. |

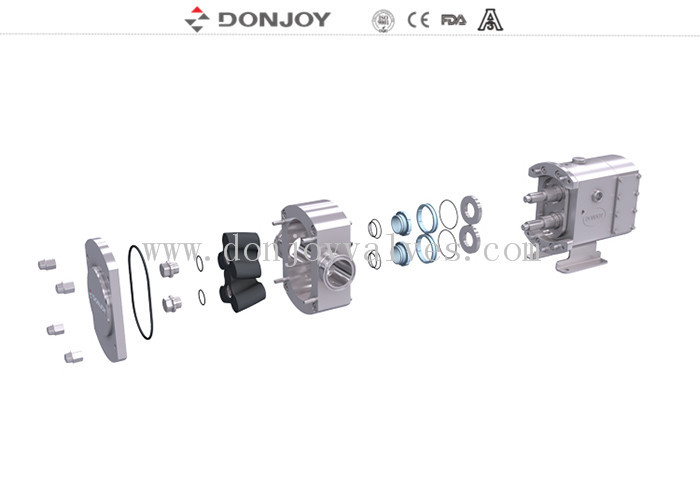

Design and Features
1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

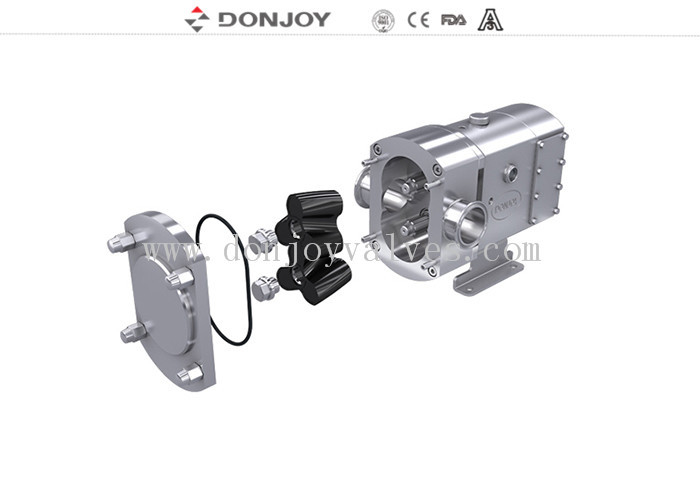

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
