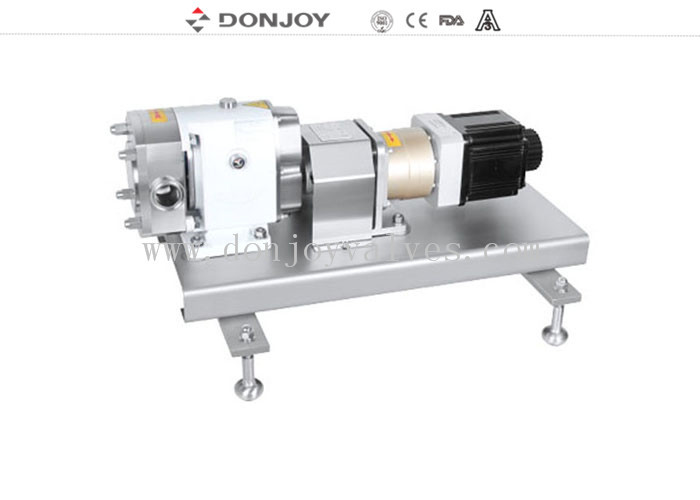

TUL-23 High Purity lobe rotary pump with servo motor for transfer chocolate with 1.5" Connection

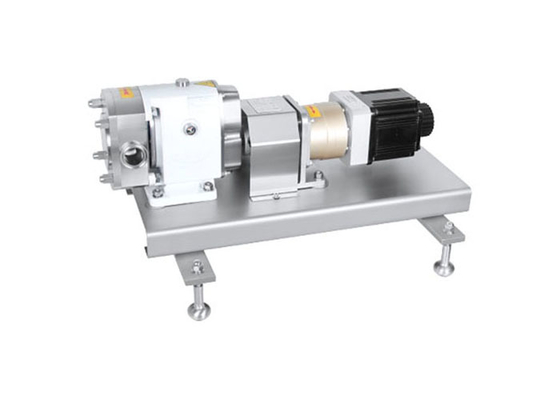

Large Image : TUL-23 High Purity lobe rotary pump with servo motor for transfer chocolate with 1.5" Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	TUL/TUR

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 20 working days

Contact Now

Detailed Product Description

Connection:	Threaded	Materials:	Stainless Steel 316L / 1.4404
Pressure:	1-15Bar	Medium:	Syrup Etc.
Size:	TUL/TUR-20 & TUL/TUR125	Type:	Horizontal Type
Mechanical:	SIC/SIC/EPDM
Highlight:	lobe rotary pump , high pressure pumps

TUL-23 High Purity lobe rotary pump with servo motor for transfer chocolate with 1.5" Connection

Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
A .Maual Continuously Variable Transmission
B.Frequency Cnverter adjust motor gear box
C.Fixed speed output transmission
11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO),Threaad(DIN,SMS,RJT,IDF),Butt weld, Flange
13. Motor Type B5 motor frequency 50HZ,60HZ
14. Voltage(v)220-240,360-400,420-460,630-690

Specifications

Product Name:	TUL-20 Lobe rotary pump
Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	SIC/SIC/EPDM (Standard, FDA approval)
Max. Flow:	62m3/h / 395 GPM
Max.pressure:	12bar/ 174PSI
Max. working temperature	150 C / 302 F
Max. rev:	1450 rmp
Rotor Type:	2-leaves, 3-leaves, butterfly, signal butterfly
Mechanical seal:	SIC/SiC/EPDM(Standard)
Voltage:	110V, 220V, 380V
Motor:	ABB,SEW, 50hz/ 60hz
Surface treatment:	Inner polished and Sandblast outside
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic driving
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Fluid operation	Operated by rotors
Model choosing	According to you flow

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Delivery details
Usually within 20 days after receiving T/T payment.

Certification
3A/54-02 (1580)
PED/97/23/EC
FDA.177.2600
ISO9001/2008

For pump selection Table


Model		Flow (M3)	Pressre (Bar)	Power	L/RPM	Connection
TUR-20	TUL-20	1-3	15	2.2	0.0896	1"
		1-3	12	1.5	0.0896	1"
		1-3	9	1.5	0.0896	1"
		1-3	5	1.5	0.0896	1"
TUR-23	TUL-23	2-5	15	4	0.1683	1.5"
		2-5	12	3	0.1683	1.5"
		2-5	9	2.2	0.1683	1.5"
		2-5	5	1.5	0.1683	1.5"
TUR-25	TUL-23	3-7	12	5.5	0.2304	2"
		3-7	10	4	0.2304	2"
		3-7	7	3	0.2304	2"
		3-7	4	2.2	0.2304	2"
TUR-30	TUL-30	5-10	15	7.5	0.3906	2"
		5-10	12	5.5	0.3906	2"
		5-10	8	4	0.3906	2"
		5-10	4	3	0.3906	2"
TUR-35	TUL-35	6.5-13	12	7.5	0.4887	2.5"
		6.5-13	10	5.5	0.4887	2.5"
		6.5-13	7	4	0.4887	2.5"
		6.5-13	3	3	0.4887	2.5"
TUR-55	TUL-50	7-14	12	7.5	0.5337	2.5"
		7-14	9	5.5	0.5337	2.5"
		7-14	6	4	0.5337	2.5"
		7-14	3	3	0.5337	2.5"
TUR-60	TUL-60	8-16	10	7.5	0.5877	DN65
		8-16	7	5.5	0.5877	DN65
		8-16	5	4	0.5877	DN65
		8-16	3	3	0.5877	DN65
TUR-70	TUL-70	15-31	9	7.5	1.152	3"
TUR-70	TUL-70	15-31	5	5.5	1.152	3"
TUR-80	TUL-80	20-40	7	7.5	1.476	DN80
TUR-80	TUL-80	20-40	4	5.5	1.476	DN80
TUR-100	TUL-100	25-50	6	7.5	1.872	4"

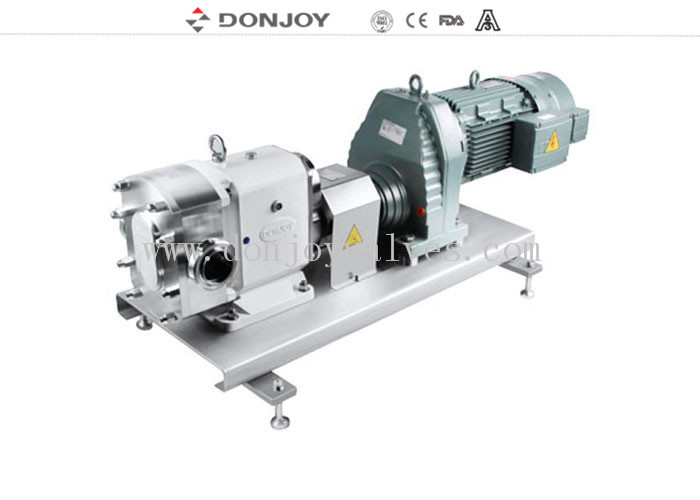

TUL-23 High Purity lobe rotary pump with servo motor for transfer chocolate with 1.5" Connection 0

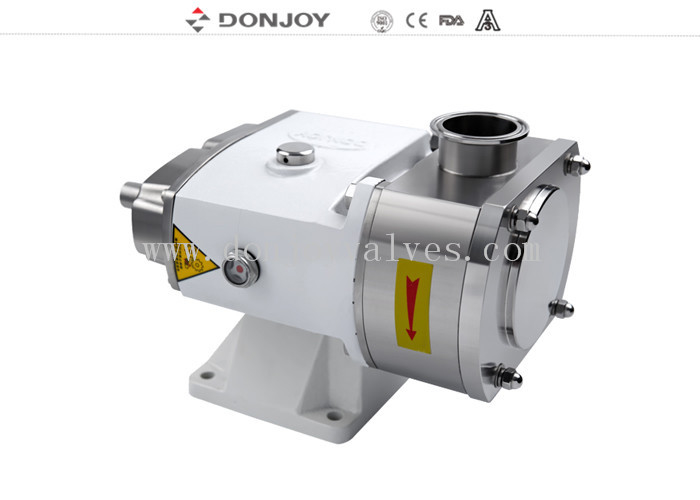

TUL-23 High Purity lobe rotary pump with servo motor for transfer chocolate with 1.5" Connection 1
