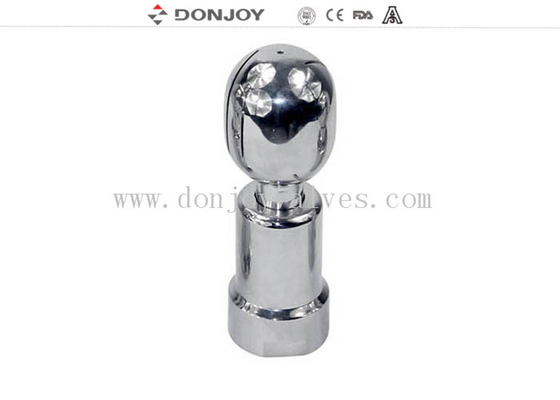

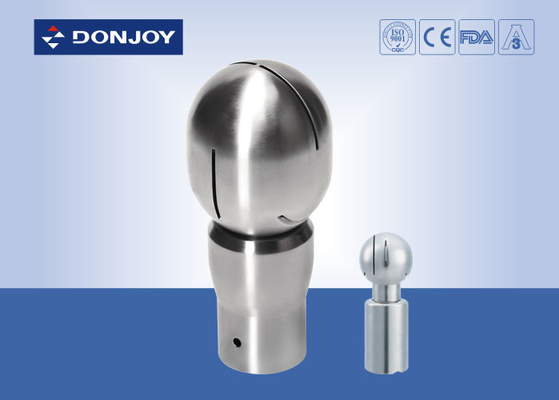

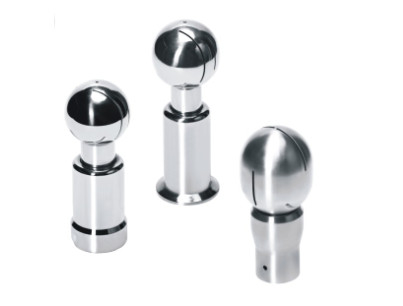

SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

Large Image : SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	Material:	SS304, SS316L
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread,pin Connection
Polished:	Mirror, Matt	Suggest Pressure:	6 Bar
Highlight:	stainless steel spray ball , spray ball for tank cleaning

SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

Quick Detail

Cleaning Ball

Type: 360 Degree, 180 Degree, 270 Degree

Nozzle Size:5mm, 6mm

Specification

Product Name:	Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Availably size:	1"-2.5"
Connection way:	thread BSP,clamp Pin, Welded
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Typical Application

1.Fixedinstallaiton CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding

Drawing

Operating Principle

1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.

SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball 2

FAQ

1,How about the surface finishing ?

KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be

confirmed by customer’s requirement.

2,If free sample available before place order ?

Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.

3,Is there any MOQ provide ?

Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.

4,Our business payment terms ?

We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.

5,Our standard export packing ?

For small order: plastic package each pc to carton and then into weaving bag.

Large order: plactic package into cartons,then cartons into plywood case.

6,Shipment way choose ?

Small orders will be choose by express,by airline.

Large orders will be choose by sea.

It will according to customer’s request.
