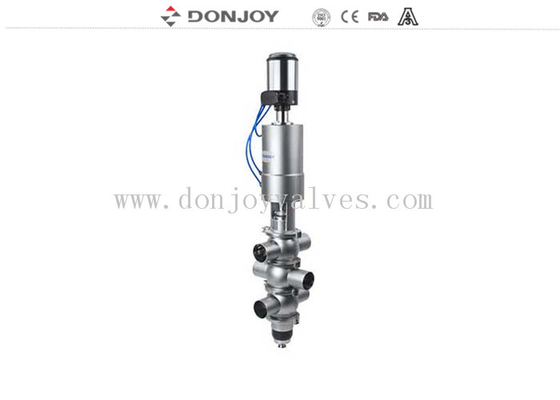

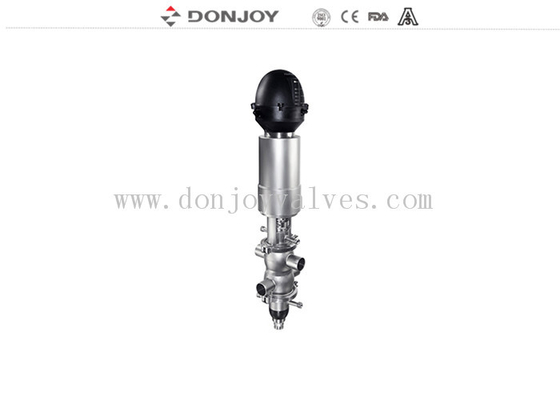

SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves

SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves

Large Image :  SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves

Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VFT101Q1-222-90
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: US $400 - 1,200 / Piece
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Operation: Pneumatic Size: DN40 - DN100 Or 1.5" - 4"
Type: IS-C Series Body Conbination: T-222
Gasket: EPDM/ VITION/NBR Material: 316L
Connection: Flange Connection Pressure Test: PED
Highlight:

SS316L Sanitary Double Seal Valve

,

Buttwelded Double Seal Valve

,

Mixproof Double Seal Valve

SS316L Sanitary Double seal valve with Control head, IS-C Series/Donjoy Mixproof valves

Specification

Product wetted parts AISI 316L
Other stainless steel parts AISI 304
Seat Material (Default) EPDM, FDA177.2600
Seat Material (Option) FPM (Viton), FDA177.2600
End Connections butt-welded, tri-clamp, Flange
Max. Working Pressure 145psi (10bar)
Min. working pressure absolute vacuum
Working Temperature 14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilisation.
Internal Finish Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
External Finish sandblast, or others upon request.
Pneumatic Actuator Types Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
Actuator air pressure 79-102 psi (5.5 bar-7 bar)
Units for intelligent control and indication C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection


Applications
◆The mixproof valve is widely used in fluid processing technology, especially in the beverage, dairy industry applications.
◆Mixproof valve is a high degree of double-seal valve. Through the interface between two fluids, this system can be implemented in two body synchronization process, preventing the possibility of contaminating materials. leakage chamber and leak detector is self- cleaning by valve seat.


Operating principles
● Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.
● The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happen, medium will flow into the chamber and be diacharged at the outlet port.
● The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users.(Refer to cleaning sterilization function options)
● Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleanig system makes the fluid that special for (CIP) clean in place directly wash all the inside calve body, it takes shorter time than common cleaning system.
● Another beneficial of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user’s steam into CIP pipeline, the system will constitute a shield that can isolate air.


Drawing
SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 0
SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 1
Valve Body conbine
SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 2
SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 3
Function Selection
SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 4
Also use for Manifold ,Examples of A Standard Manifold

SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 5

SS316L Sanitary Double Seal Valve With Control Head/Donjoy Mixproof valves 6
Tags :  Double seal valve, Mixing proof valve , Donjoy Valve
