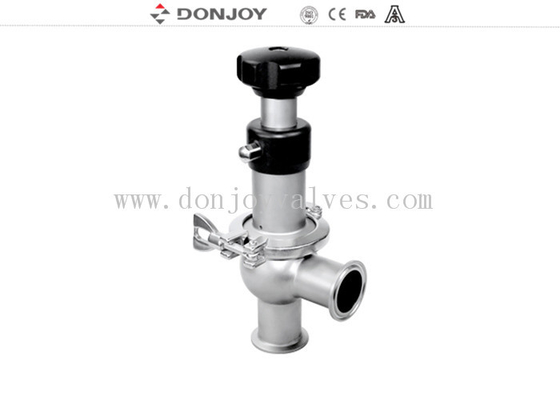

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150

ball valve diaphragm

pressure release valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.1107008

Contact Us

Request A Quote
Product Details
Material:
SS304 / 316
Connection:
Clamp, Weld, SMS Thread Union
Operate Mode:
Manual
Size:
DN25 - DN150
Type:
20,21,22
Item Name:
Sanitary Reversing Valve Of Manual Operation
Structure:
Rotary Handle Or Fine Tuning Handwheel Is Optional
Body:
Single Seat
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $150 - 1,200 / Piece
Packaging Details
carton box
Delivery Time
according to order
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000 Piece/Pieces per Month
Product Description

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150


Tag
donjoy sanitary reversing valve
Manual Flow control Valve
DONJOY Seat Valve



Specification

Product Name

Sanitary manual reversing Seat valve,SMS,DIN,INCH..

Valve body material

SS304 or SS316L

Seal material

EPDM / FPM / VITON

Max.working pressure

10 bar

Max.working temperature

130°C

Size

DN25 - DN100 or 1" - 4"

Connection

Threaded, welded, clamped,Flange

Standard

DIN, SMS, RJT, 3A

Operating mode

Manual, Pneumatic,IL Tope, Positioner

Certificate

FDA, CE, ISO,3A


Whole structure

Reversing valve, rotary handle, position safety lock,
leak detecting hole and clamp

Adjust

360° adjustable body

Hygienic Design

According to 3A Standard

Assembly

Easy assembly, disassembly of internal parts by loosening a clamp fastener

manual operation

By fine tuning handwheel


Operating Principles
Seat valve are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in the "open" or "closed" position.


Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Product drawings

304 / 316L sanitary manual regulating reversing seat valve DN25 - DN150 0
