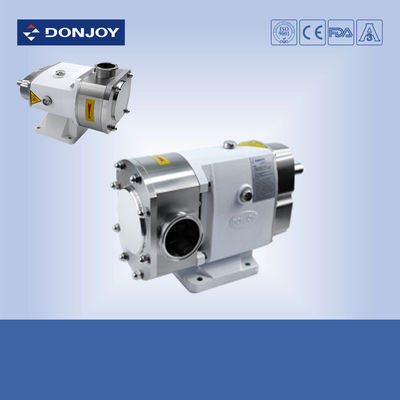

Stainless steel 316L TUL-35 mechanical rotary lobe pump for fluid control
Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM
2. Single seal, Double Mechanical Seal

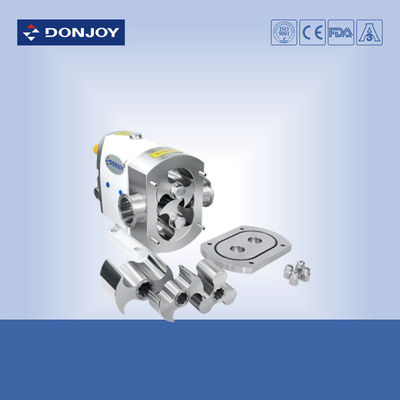

3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes

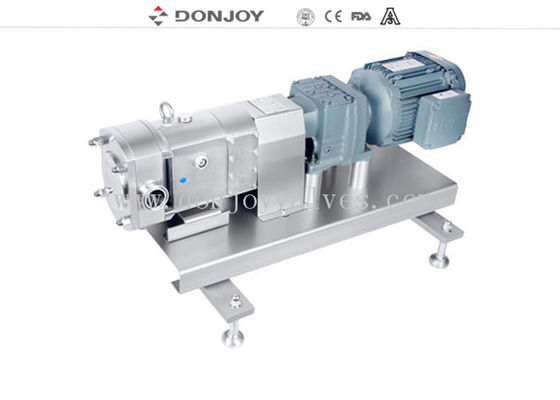

11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), 13.Butt weld, Flange13. Motor Type B5 motor frequency 50HZ,60HZ
14. Voltage(v)220-240,360-400,420-460,630-690
Specifications
|
Product Name:
|
SS316L TUL-35 Mechanical variable Lobe pump
|
|
Material:
|
SS304/SS316L/1.4301/1.4404
|
|
Seal Material:
|
SIC/SIC/EPDM (Standard, FDA approval)
|
|
Max. Flow:
|
62m3/h / 395 GPM
|
|
Max.pressure:
|
12bar/ 174PSI
|
|
Max. working temperature:
|
150 C / 302 F
|
|
Max. rev:
|
1450 rmp
|
|
Rotor Type:
|
2-leaves, 3-leaves, butterfly, signal butterfly
|
|
Mechanical seal:
|
SIC/SiC/EPDM(Standard)
|
|
Motor power:
|
1.5kw, 2.2kw, 3kw….11kw
|
|
Sealing option:
|
Sanitary single mechanical seal/
Double mechanical seal with cooling system
|
|
Motor:
|
ABB,SEW, 50hz/ 60hz
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Available connection:
|
Clamp, Thread Butt weld, Flange
|
|
Available standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electic
|
|
Certification:
|
3A, PED, FDA
|
|
Application scope:
|
Dairy, food, beverage, pharmacy, cosmetic, etc
|
| Structure |

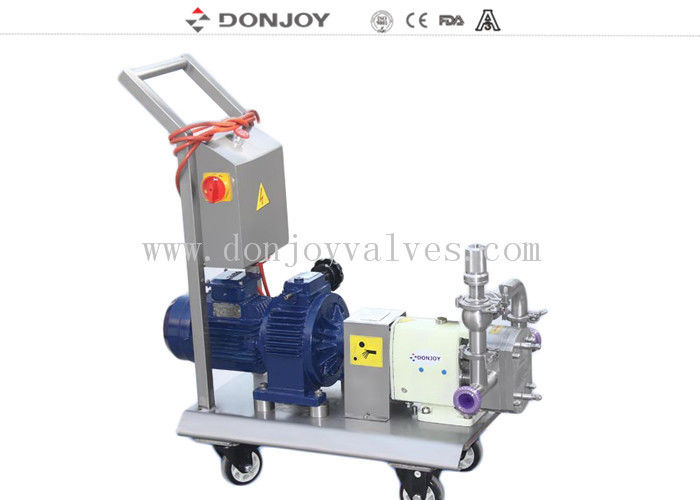

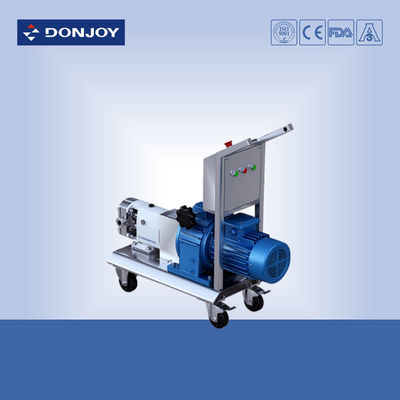

Movable / Could be moved |
| Optional |
Horizontal TUL,Vetrical TUR |
Design and Features
1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard
Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.
Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Tag: rotary lobe pumps, Transfer pumps, Cheese pump
