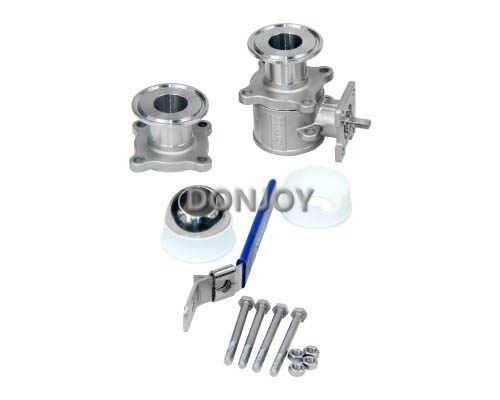

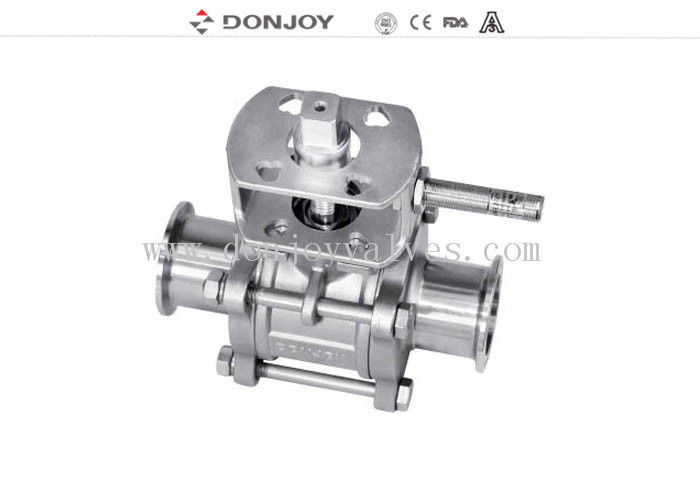

3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food

3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food
3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food

Large Image :  3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food

Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VZB40
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN25-DN100
Operation: Pneumatic, Control Head,Manual Media: 304/316L
Connection: Welded, Clamped, Thread, Flange Standard Or Nostandard: Standard
Highlight:

electric ball valve

,

stainless steel ball valve

3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food and beverage

Description:

Type of Non-rentention ball valve

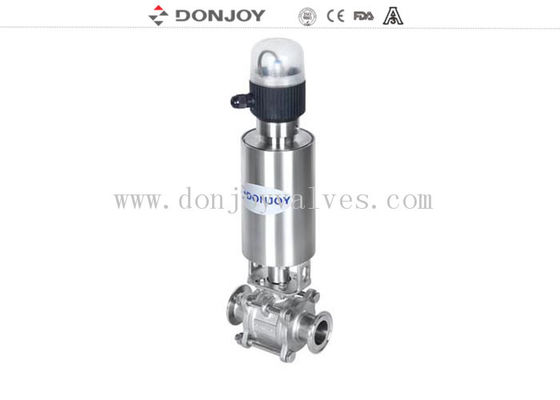

1. Pneumatic three-piece mon-retention ball valve

2. Pneumatic three-piece mon-retention ball valve with positioner

3. Pneumatic three-piece mon-retention ball valve with C-TOP

4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

5. Pneumatic three-piece mon-retention ball valve With Electric actuator

6. Aluminum acuator with positioner
Specification

Product Name: 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 150 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Advantage:
Small Turque
FDA certificate for the Gasket
Easy Cleaning
Full Port Ball

Torque Information:

SIZE 1/2”-3/4” DN25/1” DN32/11/4” DN40/1.5” DN50/2” DN65/2.5” 3” DN100/4”
Nm 6 10 12 14 20 40 75 110







Applications:

The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires

Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,


3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food 0

Competitive Advantage:

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Tag:  2 way ball valves,  Directly Ball valves, Manual Ball valves , full port ball valves
