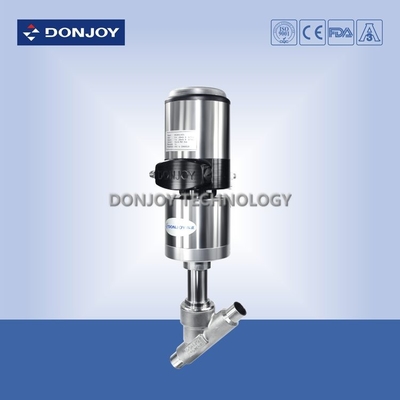

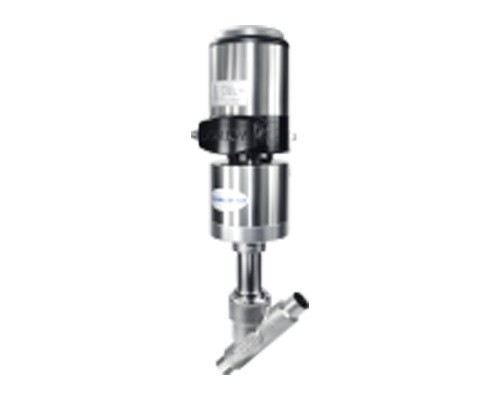

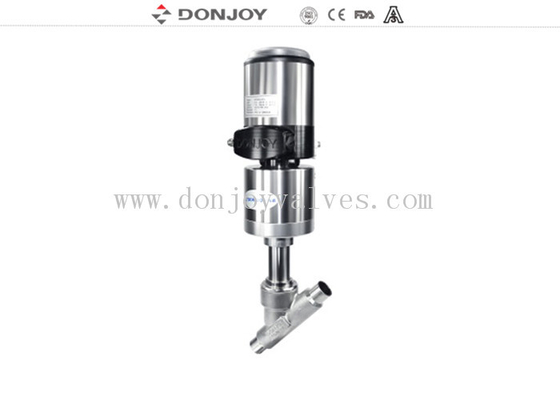

3" Stainless Steel Actuator Angle Seat Valve , Steam Angle Valve With Welding

3" Stainless Steel Actuator Angle Seat Valve , Steam Angle Valve With Welding​

Description:

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

4. Temperature: maximum temperature up to 200 (depending on the seal type)

5. Seal: elastic shaft seal design, embedded spool design.

Features

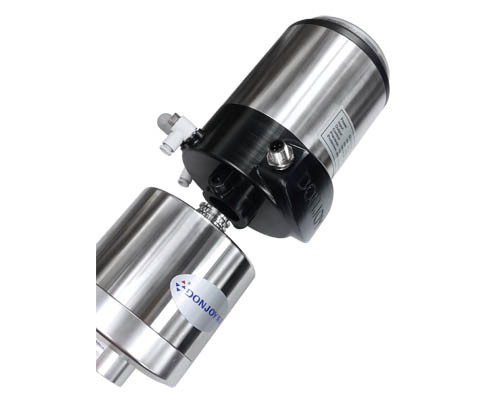

1. Stainless steel actuator

2. Manual and pneumatic interchangeable

3. Equipped with valve positioner: 0 / 5-20mA, 0-5 / 10V signal input (standard)

0 / 4-20mA, 0-5 / 10v signal output(option)

4. DEVICE NET bus communication(option), detailed information of locator to locator parameters.

specifications:

Operation Options for Seat Valve

1. Pnuematice:Plastic and stainless steel actuators

2. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Tag : Donjoy angle seat valves, Steam valve, Contro valve
