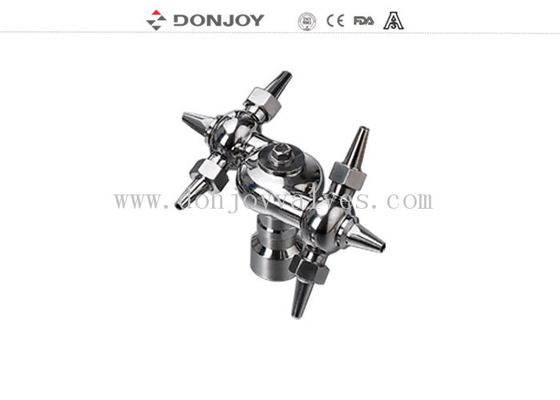

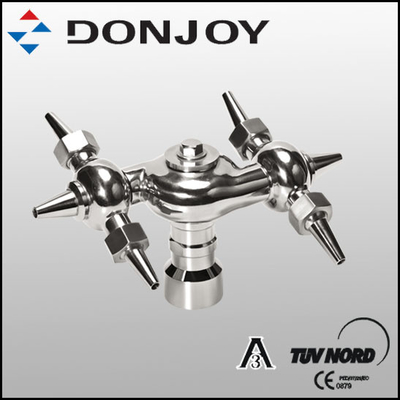

Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball

Large Image : Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotination
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T, L/C, Credit Card
Supply Ability:	3000pcs

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1"-2.5"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread
Polished:	Mirror, Matt	Material:	Stainless Steel
Highlight:	spray balls stainless steel , stainless steel spray ball

Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball

Operating Principle

1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self cleaning function, internal is completely cleaning.

Quick Detail
Cleaning Ball
Connection: Thread , Bolt Pin
Size: 1",11/4",1.5", 2" (DN25,DN32,DN40,DN50)
Materials : SS304, SS316L

Specification

Product Name:	Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Available size:	1.5"-DN40
Connection way:	thread BSP, clamp
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and dairy products , Pharmaceutical, Chemical treatment, Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing is carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Typical Application
1.Fixedinstallaiton CIP System
2.Process Containers and reactor
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding

Operating Principle

2. Rotary injector with unique self cleaning function, internal is completely cleaning.

Why choose us:

1. Leading manufacturer and Top supplier in stainless steel
2. Low Prices Direct From Factory Suppliers.
3. Fast Delivery Around The Globe.
4. Professional OEM/ODM and Personalized private customize.
5. High Quality With Global Standards.

Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball 0

We Have cooperation with most logistics company, Such as TNT, UPS, FEDEX, DHL.
Packing: Cartons, Wooden Case
Delivery time: About 7 days. If bigger quantity can check it again.
If you need more information,please do not hesitate to contact us.

Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball 1

Stainless Steel CIP System 360° Rotary Tank spray cleaning Ball,Thread Cleaning Ball 2
