CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top

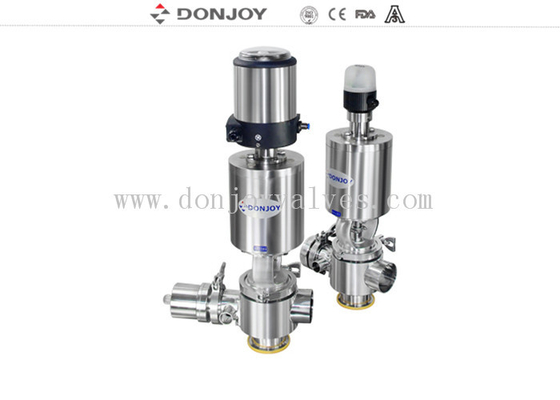

Large Image : CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Operation:	Pneumatic Actuator	Size:	DN40 - DN100 Or 1.5" - 4"
Type:	CIP Mixing Proof Valve	Pressure:	Medium Pressure
Direction:	Angular Orientation 360°	Feature:	Valve Position Can Be Adjusted
One Valve Body:	Stop Reversing Valve	3 Valve Bodies:	Divert Seat Valve
Highlight:	diaphragm actuator valve , pressure release valve

CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top
Description
Two optional designs: One valve body (stop reversing)
Three valve bodies(divert seat valve)

Specification

Product Name:	CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top
Valve Body Material:	316L
Seal Material:	EPDM (standard) FPM / SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	120°C
Available size:	DN40 - DN100 or 1.5" - 4"
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / DIN / SMS / RJT / ISO / IDF
Operated:	Pneumatic
One valve body:	Stop reversing valve
Three valve bodies:	Divert seat valve
Direction	Angular orientation 360°
Cleaning	CIP cleaning
Structure	With pneumatic actuator and C - TOP
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Applications
The external supply CIP mixing proof valve is designed to meet when there are two different product flows through the same only valve,both guarantee to prevent fluid mixing and convenient for monitoring the working condition.

Operating principles
1.Remotely control through compressed air this valve is normally closed(NC).this valve is companied with two small pneumatic valves(Normally open). one for monitoring ,another one for CIP.
2.Body(upper stem inside of a changever valve) has two seals,which form a leakage chamber between each other,the leakage medium flow into the chamber,discharges through detector valve.supply air to actuator can make the valve clean in place.
3.Under cleaning,fluid flow directly to the plug,this valve is unsensitive to water hammer effect.

Body combinations

Product Drawings
