| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | CGMOS1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 10-30 working days |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 30 sets 20 working dyas |
| Product Name: | One Year Warranty Stainless Steel Sanitary Manual Diaphragm Valve With FDA Membrane | Suitable Temperature: | -10 To 120 Degree (EPDM) |
|---|---|---|---|
| Operation: | Stainless Steel Handwheel | Gasket Optional: | EPDM/ SILICONE/ FPM |
| Surface Polishing: | Ra<0.8um | Material: | Stainless Steel |
| High Light: | diaphragm check valve,sanitary sample valve |
||

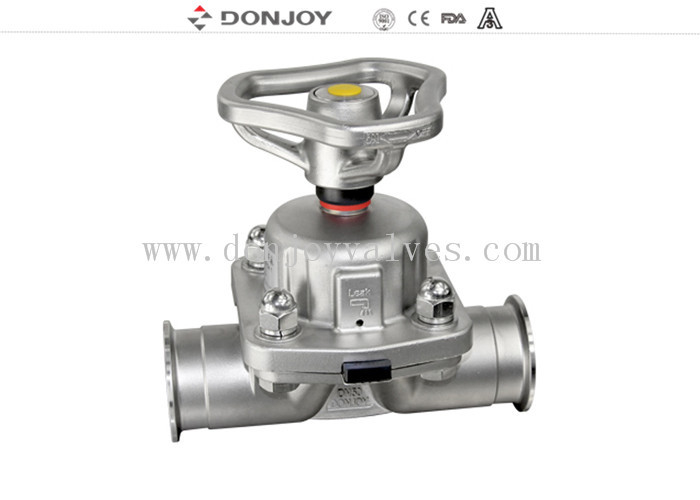

One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane
Specifications
|
Product Name: |
One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane |
|

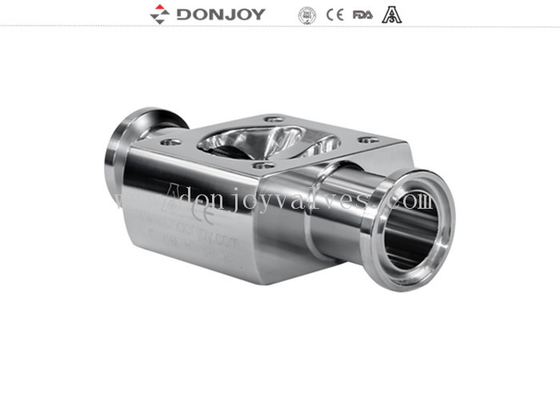

Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
10 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1”-4”, DN20-DN100 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual/Pneumatic/Electronic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Leading design: |
Dead conner ＜ 3D |
|
Certificate |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

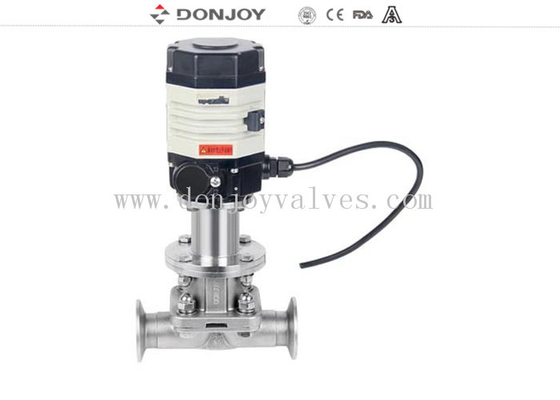

2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
