1 inch sanitary multiport Diaphragm valve with Dead leg design for Pharmaceutical processing

1 inch sanitary multiport Diaphragm valve with Dead leg design for Pharmaceutical processing

diaphragm check valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.

Contact Us

Request A Quote
Product Details
Product Name:
Pneumatic Multiport Diaphragm Valve
Materials:
SS316L / 1.4404
Size:
1'' - 4'', DN25 - DN100
Operation:
Pneumatic
Connection:
Welding
Gasket:
EPDM + PTFE
Feature:
Round Steel Valve Body
Structure:
Multi - Directional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

1 inch sanitary inox multiport Diaphragm valve with Dead leg design for Pharmaceutical processing

Specifications

Product Name:

 Inox sanitary beverage multiport diaphragm valve

Valve Body Material:

 SS316L

Max Working Pressure:

8 Bar

Max.WorkingTemperature:

 150 degree C

Available  size:

 1/4”-3/4”, DN6-DN15

Available connection:

 Clamp/weld/thread/special connection

Available standard:

 3A/BPE/DIN/ISO/IDF

Operation mode:

 Pneumatic operation

Special composition:

Inox

Structure:

Round steel valve body with multi-port.

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


 Description
 Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2.      Diaphragm valve with Control Unit (C-Top)

3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor

10.  Body: Casting / Forging

Valve Body:

Forging body blank is through a piece of stainless steel ingot, in the forging process, alongwith the high temperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to letthe whole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting ofthe stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Diaphragm :
Single Seal : For EPDM the temperature range about -10 to 120degree, And it is suitable for use in vacuum environment

EPDM+PTFE (Adhesive) : Temperature is the same with Single sea, But For the PTFE diaphragm with high chemical resistance, High Stability, Good Flexibility, Long life,high Sealing, No cold Degeneration.It also can use for Steam disinfection System.

EPDM+PTFE(Separate), The Max Temperature can suffer 150 degree can can work in bad conditions
And when you asked the quotation and didn’t mark the request, we will provide the EPDM+PTFE(Adhesive) one

About the treatment : If for mechanical polished : Ra about 0.3 um , If electric polished : Ra about 0.25um. Also can according customer request


Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.

Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

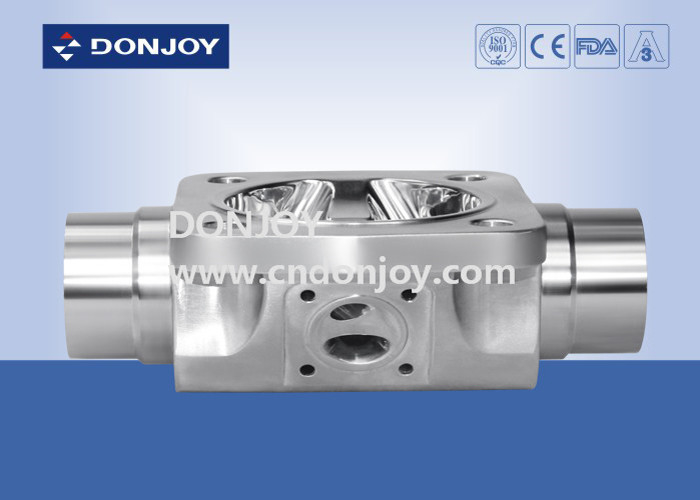

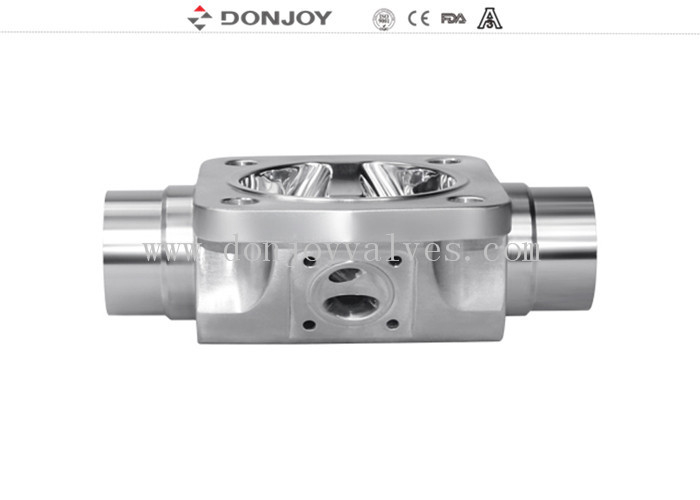

Valve body
