DN25 150 Degrees Waterproof Hygienic Sight Glass

DN25 150 Degrees Waterproof Hygienic Sight Glass

    • DN25 150 Degrees Waterproof Hygienic Sight Glass
    • DN25 150 Degrees Waterproof Hygienic Sight Glass
    • DN25 150 Degrees Waterproof Hygienic Sight Glass
  • DN25 150 Degrees Waterproof Hygienic Sight Glass

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE / FDA/ ISO / 3A
    Model Number: NO.VSJ400N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 10-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Name: Four-way Sight Glass SIZE: DN25 - DN100
    Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped,Thread
    Polished: Mirror, Matt Temperaure: -10 Degree To 150 Degree
    Structure: Four Way Sight Glass Power: Cable Power Or Wireless Power Is Optional
    High Light:

    waterproof hygienic sight glass

    ,

    DN25 Hygienic Sight Glass

    ,

    NBR Hygienic Sight Glass

    DONJOY hygienic stainless steel tempered glass 4 way sight glass 150 degrees waterproof



    Quick Detail

    No retention four-way Sight Glass

    Size:DN25-DN100,1"-4"

    Gasket: EPDM, NBR,FPM

    Working Pressure:10Bar



    Specification

    Product Name:

    Sanitary Four way sight glass

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,NBR, FPM

    Sight glass:

    tempered glass

    Max.temperature:

    -10 to 150 degree

    Battery:

    rechargeable battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

    Available connection:

    Clamp, Thread, weld, DIN,SMS, IDF

    Available standard:

    DIN, SMS, 3A, ISO

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Structure:

    Four-way sanitary sight glass

    Power:

    Cable power or wireless power is optional



    Drawing

    DN25 150 Degrees Waterproof Hygienic Sight Glass 0

    DN25 150 Degrees Waterproof Hygienic Sight Glass 1

    DN25 150 Degrees Waterproof Hygienic Sight Glass 2

    DN25 150 Degrees Waterproof Hygienic Sight Glass 3



    Application
    The no retention four-way sight-glass is comprised of stainless steel frame and glass. Through it, the operator can observe the flowing of the liquid substance clearly and precisely in the fields of flood, cosmetic, pharmaceutical and fine chemicals industries


    Technical Feature
    All available size can be installed on the equipment through clamps
    No retention, zero dead angle, high light, white cold light source, waterproof, explosion-proof. Cable power supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)
    Rechargeable battery type, connection cable type with a stainless steel shell, DC 24V



    Product display

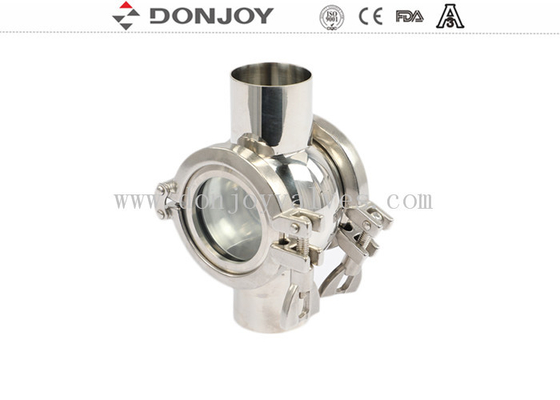

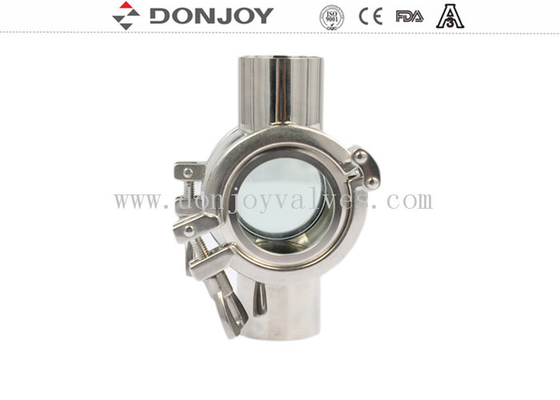

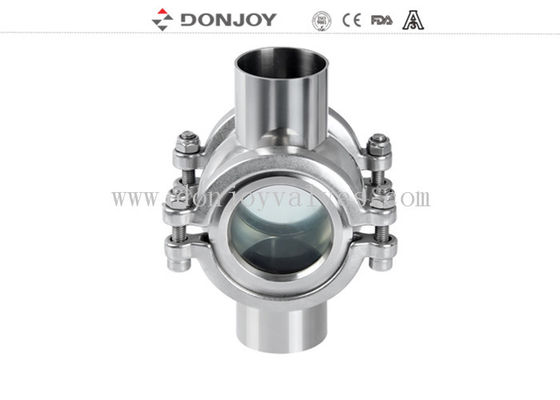

    DN25 150 Degrees Waterproof Hygienic Sight Glass 4

    DN25 150 Degrees Waterproof Hygienic Sight Glass 5
