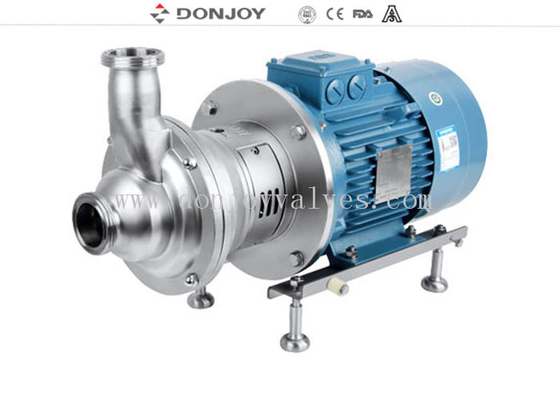

11KW SS304 Food Grade Cip Return High Purity Pumps

11KW SS304 Food Grade Cip Return High Purity Pumps

cip return high purity pumps

11KW high purity pumps

SS304 high purity pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

CIP-L

Contact Us

Request A Quote
Product Details
Materials:
SS316L/SS304
Flow:
20T/24M,11KW
Mechanical:
Single Sealing Parts
Inlet:
3" Thread/Clamp/Ferrule
Outlet:
2.5" Thread/Clamp/Ferrule
Medium:
Flow Tranfering And Controlling
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description



High Purity Self priming pump for tank empting and CIP Soluction with higher Suction



Soluction for highe efficiency , low noise, large suction, simple maintenance, high purity

Various Application for CIP Series
Superior self-priming capacity up to 8Meter, negative pressure can be -0.8bar
CIP Soluction
Tank emptying
Low liquid level can be 8 meter suction



Product Name:

CIP self priming centrifugal pumps L series for wine processing

Valve Body Material:

Stainless steel 304 / 316L

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

40 m³/h

Max. Speed:

3600 min-1

Max. Head:

42m

CIP selection:

As per real situation

Driving mode:

By impeller installed on the inlet.

Mechanical seal:

C/SIC/EPDM

Sealing type:

Flushed double mechanical seal/single mechanical seal (standard)

Motor:

ABB / domestic is optional

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Application structure:

CIP L

Available connection:

Tri-Clamp, Thread, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option:

Low discharge/diaphragm valve/ball valve/butterfly valve

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.





 Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, acetone and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.
Operation Principles
1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.





Mechanical Design

11KW SS304 Food Grade Cip Return High Purity Pumps 0

Donjoy DJ-CIP-L Series self-priming centrifugal pump eachanical seal is researched and developed together with european swedish famous company. The mechanical seal is designed with pressure balance and super long working life. Can be disassembled and maintained easily without special tools. The sanitary purity is according to EU EHEDG, USA 3-A-02-11,FDA1772600 and so on . And has lots of configuaration.





CIP SERIES PUMP Inlet&outlet connection Standard

Connection: Thread, clamped, Flange, Aspetic Flange, KF etc

Standard: DIN, SMS,ISO, IDF, RJT, ASME BPE, 3A, I LINE



Mechanical seal Materials option :



1. SIC/CEPDM, SIC/C/FKM, SIC/C/HNBR, SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, TC/TCEPDM, TC/TC/FKM, TC/TC/HNBR.



CIP Self Priming Centrifugal pump selection table :


11KW SS304 Food Grade Cip Return High Purity Pumps 1
For more detail please contact us directly
