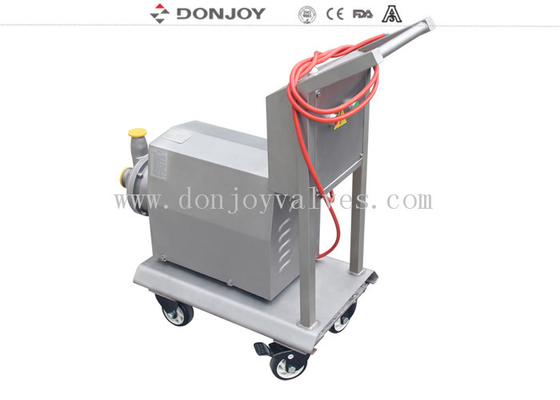

3phase sanitary stainless steel CIP self priming centrifugal pump for milk/water manufacturer Tankmanufacturer
Soluction for highe efficiency , low noise, large suction, simple maintenance, high purity
Technical specifications
Max flow : 30m³/h/132GPM
Max head : 30 H(M)
Max pressure : 3bar/43 PSI
Max operating temperature : 120°C/248°F
Max rev : 1750 min
Max suction height : 8M /22ft
Specifications
|
Product Name:
|
CIP Pump /Return pump
|
|
Body Material:
|
SS304 / SS316L / 1.4301 / 1.4404
|
|
Seal Material:
|
EPDM (Standard, FDA approval) FPM(Viton) and NBR
|
|
Max. Flow:
|
35 m3/h
|
|
Max. Speed:
|
3600 min-1
|
| Max. rev: |
1750Min - 1 |
| Max. suction height |
8m / 22 ft |
|
Max. Head:
|
42H(m)
|
|
Max. Working Pressure:
|
4.2Bar
|
|
Max. Working
Temperature:
|
120 °C
|
|
Mechanical seal:
|
C /SIC /EPDM
|
|
Motor:
|
ABB / domestic
|
|
Motor Frequency:
|
50HZ, 60HZ
|
|
Availably connection:
|
Tri-Clamp, Thread, Flange
|
|
Availably standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electic
|
|
Low discharge option :
|
Low discharge / diaphragm valve / ball valve / butterfly valve
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic etc
|
Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.
Operation Principles

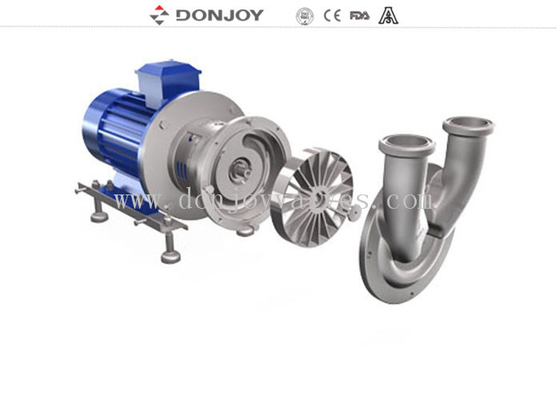

1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.
Design and features
1. Motor cover manufactured with Cold-formed plate
2. stainless steel investment casting inlet body and impeller
3. Mechanical seal prevents contacting between the spring and the pumped fluid.
4. Stainless steel support
5. Surface finished: Sandblast
6. Connection: Threaded/ Clamp / Nut /, DIN11864 Aseptic, KF
7. Standard : DIN, SMS, ISO, IDF, RJT, ASME BPE, 3A, I-LINE
Mechanical Seal System:
Donjoy DJ-CIP Series Sefl-priming pump mechanical seal is researched and developed together with European swedish famous company. The mechanical seal is designed with pressure balance and super long working life,Can be disassembled and maintained easily without special tollds. Then sanitary purity is according to EU EHEDG, USA 3-A-02-11, FDA1772600 and so on. And has lots of configuration
Mechanical seal (standard) :C/SiC/EPDM, sic/c/FKM, SIC/SIC/EPDM,TC/TC/EPDM, TC/TC/FKM.
- CIP U Series self priming pump Selection Table
CIP U Series self priming pump data sheet
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Tags : Donjoy pump, Sanitary pump , CIP Pump, Self -priming pump, Food pump
