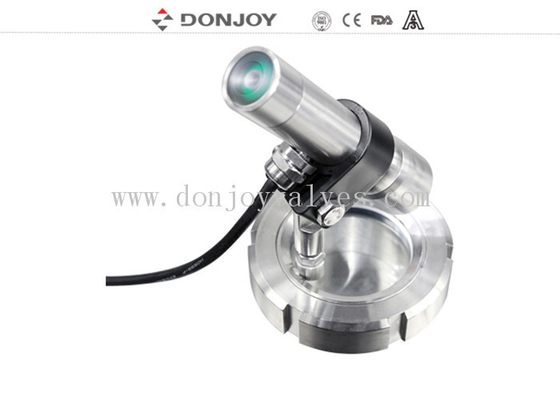

DONJOY high quality hot selling tank hygienic stainless steel sight glass with light DC24V for pharmaceutical
Quick Detail

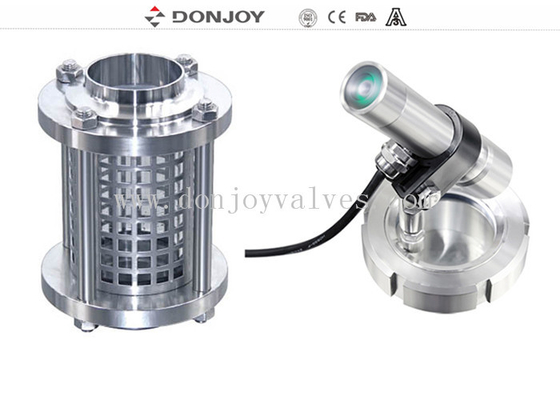

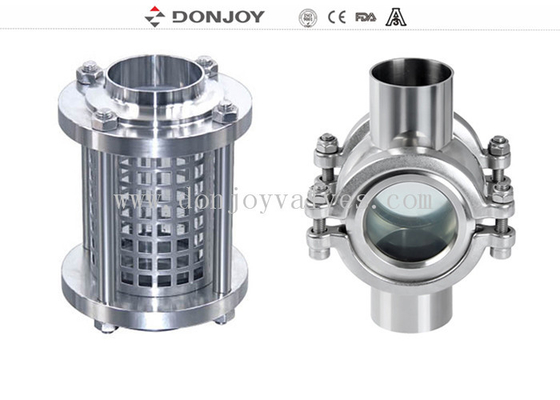

Tubular Sight Glass, Straight Sight Glass, Four Way Sight Glass,Union sight glass with light
Size:DN10-DN300/0.5"-12"
Gasket: EPDM, NBR, FPDM
Working Pressure:10Bar
Specification
|
Product |
Inline sight glass |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,NBR,FPM |
|
Sight glass: |
tempered glass Borosilicate |
|
Max.temperature: |
-10 to 120 degree |
|
Battery: |
No |
|
Available connection: |
Clamp, Thread, weld, DIN, SMS, IDF |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customized. Or as per the request of customers |
|
Delivery details: |
10-20 days |
Drawing
INCH
| Size | H | D | D1 | DN |
| 1/2" | 140 | 78 | 12.7 | 9.4 |
| 3/4" | 140 | 78 | 19.1 | 15.8 |
| 1" | 140 | 78 | 25.4 | 22.4 |
| 1 1/4" | 140 | 78 | 31.8 | 28.8 |
| 1 1/2" | 140 | 86 | 38.1 | 35.1 |
| 2" | 142 | 102 | 50.8 | 47.8 |
| 2 /12" | 146 | 115 | 63.5 | 59.5 |
| 3" | 146 | 124 | 76.2 | 72.2 |
| 3 1/2" | 150 | 139 | 89 | 85 |
| 4" | 156 | 154 | 101.6 | 97.6 |
| 5" | 170 | 185 | 133 | 127 |
| 6" | 180 | 215 | 147 | 153 |
DIN
| Size | H | D | D1 | DN |
| DN10 | 140 | 78 | 13 | 10 |
| DN15 | 140 | 78 | 18 | 15 |
| DN20 | 140 | 78 | 22 | 19 |
| DN25 | 140 | 78 | 28 | 25 |
| DN32 | 140 | 86 | 34 | 31 |
| DN40 | 140 | 90 | 40 | 37 |
| DN50 | 142 | 102 | 52 | 49 |
| DN65 | 146 | 124 | 70 | 66 |
| DN80 | 150 | 139 | 85 | 81 |
| DN100 | 156 | 154 | 104 | 100 |
| DN125 | 170 | 185 | 129 | 125 |
| DN150 | 180 | 215 | 154 | 150 |
Application
Straight sight glass and Four way sight glass is comprised of a stainless steel frame and tempered glass. Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food, cosmetics, pharmaceutical and fine chemical industries.
Size from 1"-12" to DN25--DN300 the glass can be installed on the equipment through clamps.
