| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Model Number: | VSJ400N1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton, Wooden Case |
| Delivery Time: | 5-30 working days |
| Payment Terms: | T/T,L/C, Credit Card |
| Supply Ability: | 4000pcs per month |
| Name: | Four Way Sight Glass | SIZE: | DN25-DN100,1"-4" |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread |
| Polished: | Mirror, Matt | Material: | AISI 304(1.4301) AISI 316L(1.4404) |
| High Light: | sus304 sanitary sight glass,DN25 sanitary sight glass,DIN sanitary sight glass |
||

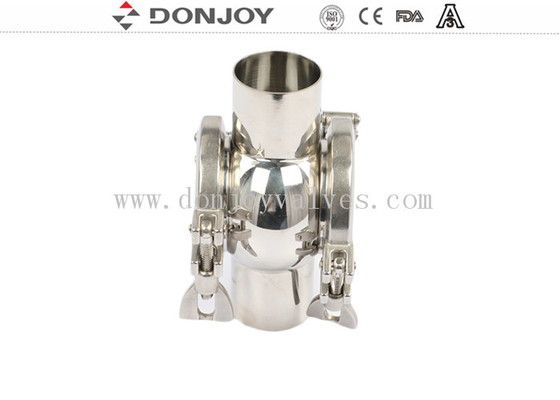

DONJOY hot sanitary stainless steel SUS304 sight glass with AC110V light zero dead angle
Quick Detail
Tubular Sight Glass, Straight Sight Glass, Four Way Sight Glass, Union sight glass with light
Size:DN25-DN100/0.1"-4"
Gasket: EPDM, NBR, FPDM
Working Pressure:10Bar
Specification
|
Product |

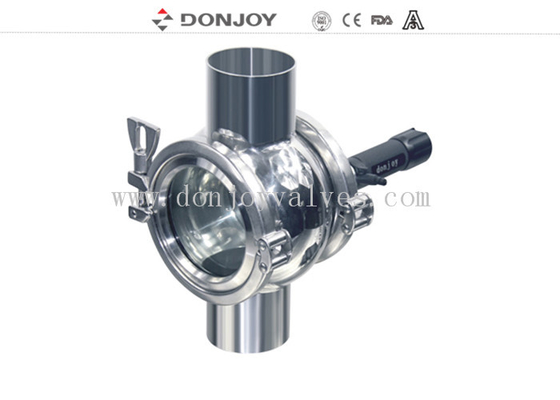

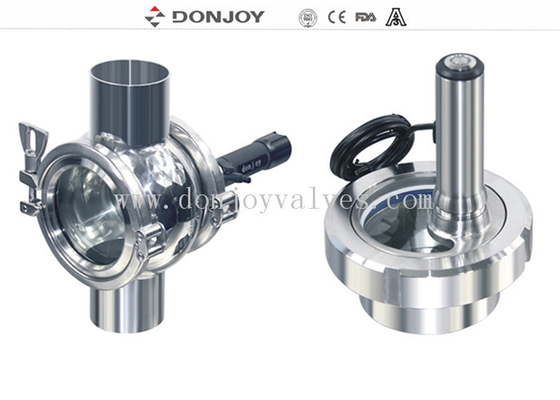

Four way sight glass with AC110V lighting |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,NBR,FPM |
|
Sight glass: |
tempered glass Borosilicate |
|
Max.temperature: |
-10 to 80 degree |
|
Battery: |
No |
|
Available connection: |
Clamp, Thread, weld, DIN, SMS, IDF |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customized. Or as per the request of customers |
|
Delivery details: |
10-20 days |
Drawing
INCH
| Size | D | Dn | H | L |
| 1 1/2" | 38.1 | 35.1 | 75.1 | 165 |
| 2" | 50.8 | 47.8 | 87.8 | 165 |
| 2 /12" | 63.5 | 59.5 | 101.5 | 205 |
| 3" | 76.2 | 72.2 | 114.2 | 230 |
| 4" | 101.6 | 97.6 | 141.6 | 300 |
DIN
| Size | D | Dn | H | L |
| DN40 | 40 | 37 | 75.1 | 165 |
| DN50 | 52 | 49 | 87.8 | 165 |
| DN65 | 70 | 66 | 108 | 218 |
| DN80 | 85 | 81 | 123 | 250 |
| DN100 | 104 | 100 | 141.6 | 300 |
Application
Straight sight glass and Four-way sight glass is comprised of a stainless steel frame and tempered glass. Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food, cosmetics, pharmaceutical and fine chemical industries.
Size from 1"-12" to DN25--DN300 the glass can be installed on the equipment through clamps.
