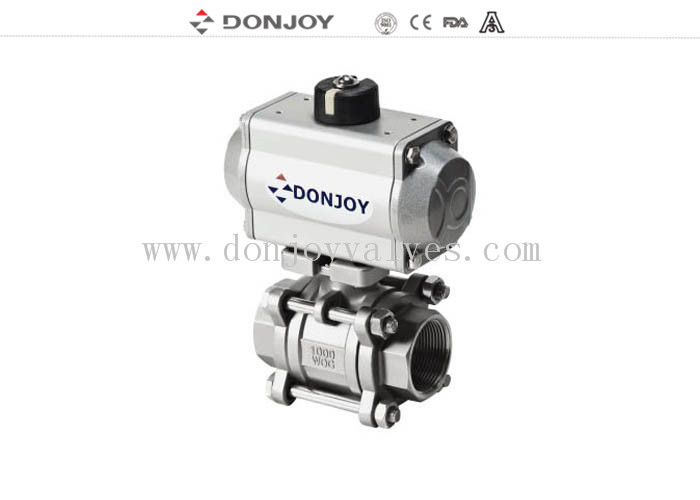

BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve

BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve

DN25 Pneumatic Ball Valve

BPE Pneumatic Ball Valve

SS316L Pneumatic Ball Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VZB40

Contact Us

Request A Quote
Product Details
Product Name:
Directly Ball Valve
Size Of Panel:
DN25-DN100
Operation:
Pneumatic, Control Head,Manual
Materials:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Medium:
Beverage,water...
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS304/316L Clamp 3-pcs Non-retention ball valve, 2 Way ball valve for Diary

Description:
Type of Non-rentention ball valve

1. Pneumatic three-piece mon-retention ball valve

2. Pneumatic three-piece mon-retention ball valve with positioner

3. Pneumatic three-piece mon-retention ball valve with C-TOP

4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

5. Pneumatic three-piece mon-retention ball valve With Electric actuator

6. Aluminum acuator with positioner
Specification

Product Name:3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food
Valve Body Material:SS304 or SS316L
Seal Material:PTFE
Max. Working Pressure:10Bar
Max. Working Temperature:150 degree C
Availably size:DN25-DN100 or 1" - 4"
Availably connection:Weld,Clamp,Thread, Flange
Availably standard:DIN,SMS,3A
Ball Type:Directly
Operated:Manual,Pneumatic,Electric,control Head
Certificate:FDA,CE,3A,ISO

 Advantage:
Small Turque
FDA certificate for the Gasket
Easy Cleaning
Full Port Ball


Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires

Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,

Torque Information:

SIZE1/2”-3/4”DN25/1”DN32/11/4”DN40/1.5”DN50/2”DN65/2.5”3”DN100/4”
Nm6101214204075110





Relate Ball valve
 BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve 0

Drawing
BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve 1
Curve
BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve 2
Surface Treatment
BPE SS316L Beverage 2 Way DN25 Pneumatic Ball Valve 3

Competitive Advantage:

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
