FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve

FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve

    • FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve
    • FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve
  • FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VZB40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Directly Ball Valve Size Of Panel: DN25-DN100
    Operation: Pneumatic, Control Head,Manual Materials: 304/316L
    Connection: Welded, Clamped, Thread, Flange Medium: Beverage,water...
    High Light:

    SS316L Three Piece Ball Valve

    ,

    DN100 Three Piece Ball Valve

    ,

    FDA Sanitary Ball Valve

    Electric three piece ball valve for Comestic transfer with 316L materials

    Description:
    Type of Non-rentention ball valve

    1. Pneumatic three-piece mon-retention ball valve

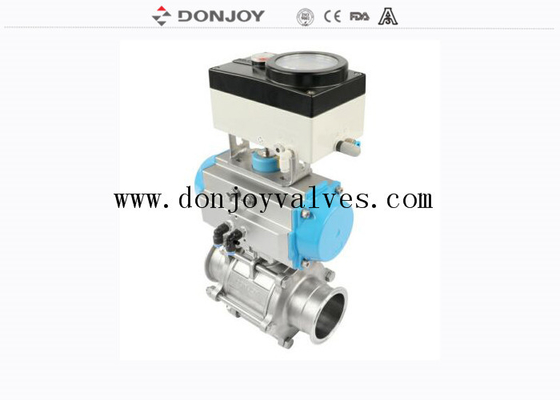

    2. Pneumatic three-piece mon-retention ball valve with positioner

    3. Pneumatic three-piece mon-retention ball valve with C-TOP

    4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

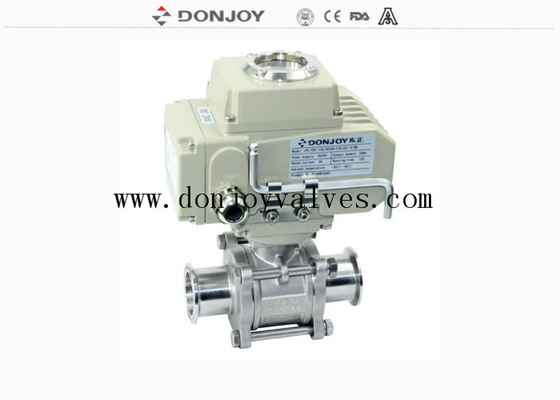

    5. Pneumatic three-piece mon-retention ball valve With Electric actuator

    6. Aluminum acuator with positioner
    Specification

    Product Name: 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO


    Applications:
    The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires


    Technical Feature
    All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,



    Advantage

    1.Small Torque,

    2.Long Service life

    3.Full degreasing,

    4.sealing elastic compensation

    5. Small size, trace retention inside, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable


    Torque Information:

    SIZE 1/2”-3/4” DN25/1” DN32/11/4” DN40/1.5” DN50/2” DN65/2.5” 3” DN100/4”
    Nm 6 10 12 14 20 40 75 110





    Relate Ball valve
     FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve 0

    Drawing
    FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve 1
    Curve
    FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve 2
    Surface Treatment
    FDA Pneumatic Clamped DN100 SS316L Three Piece Ball Valve 3

    Competitive Advantage:

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
