Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VQW1Z0S1-06
Contact Us

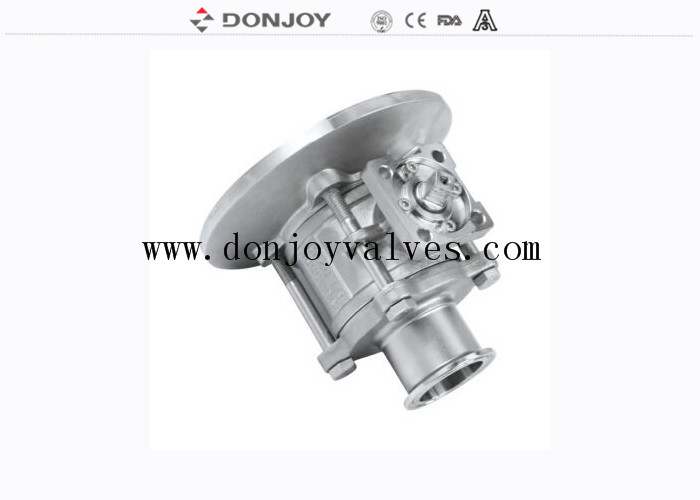

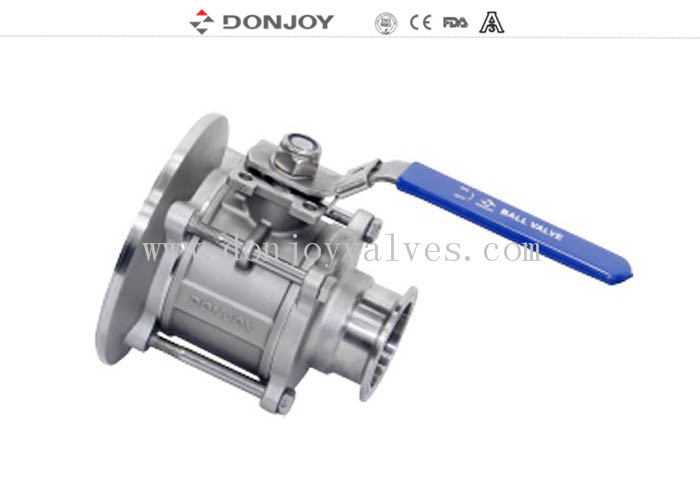

DN65 316L Tank bottom ball valve with Tri clamp for dairy and pharmacy tanks
Description:
Size:DN10-DN100 or 1/2"-4"
Connection form:welding
Driving mode: manual
Channel: straight through type
Flow rate:10t-60t
Specification:CE, SGS
Specification
| Product Name: | DN65 316L Tank bottom ball valve with Tri clamp for dairy and pharmacy tanks |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The tank bottom ball valve is a specially designed applied to pressure vessels and equipment, including tank emptying and feeding of tank bottom valve, turnkey tee and sealing automatic compensation design, therefore, with the high pressure and high temperature resistant, torque, etc. The characteristics of long service life, content with CIP and SIP cleaning and sterilization. Very suitable for application in high clean technology system such as biological pharmacy, food and beverage, dairy products, chemical and other fields.
A configurable various actuators, such as electric, pneumatic, manual interchangeable.
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Tag : Tank bottom valve, Ball valve for Tank bottom, Donjoy Valves
