Welding SS316L Beverage Tanks DN40 Sanitary Ball Valve

Welding SS316L Beverage Tanks DN40 Sanitary Ball Valve

Pneumatic Tank Bottom Ball Valve

DN40 Sanitary Ball Valve

SS316L Sanitary Ball Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQW1Z0Q1-06

Contact Us

Request A Quote
Product Details
Product Name:
Tank Bottom Ball Valve
Size Of Panel:
DN10-DN100,1/2"-4"
Operation:
Pneumatic, Control Head,Manual
Material:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Application:
Dairy Products, Food, Neverage, Chemical
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

DN40 Sanitary Pneumatic Tank bottom ball valve welding end for beverage tanks



Description:

Size:DN10-DN100 or 1/2"-4"

Connection form:welding

Driving mode: manual

Channel: straight through type

Flow rate:10t-60t

Specification:CE, SGS



Specification

Product Name: DN40 Sanitary Pneumatic Tank bottom ball valve welding end for beverage tanks
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 150 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Applications:

The tank bottom ball valve is a specially designed applied to pressure vessels and equipment, including tank emptying and feeding of tank bottom valve, turnkey tee and sealing automatic compensation design, therefore, with the high pressure and high temperature resistant, torque, etc. The characteristics of long service life, content with CIP and SIP cleaning and sterilization. Very suitable for application in high clean technology system such as biological pharmacy, food and beverage, dairy products, chemical and other fields.



A configurable various actuators, such as electric, pneumatic, manual interchangeable.



Various Connection Type:

1.Flange

2.Nut : DIN, SMS,IDF,RJT, ISO

3.Clamp Ferrule : ASME BPE,3A,DIN,ISO

4.Female Thread :DIN BSP, BSPT, NPT

5.Male Thread : DIN,SMS, IDF,RJT,ISO

6.Butt Welding: DIN, ASME,BPE, BS4825,ISO

7.Aseptic Flange: DN11864 DIN11853 ASME BPE

Notes: Various connection type are applicable to all different series of ball valve, such as straight, three way, mini ball , four way ball valve...



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

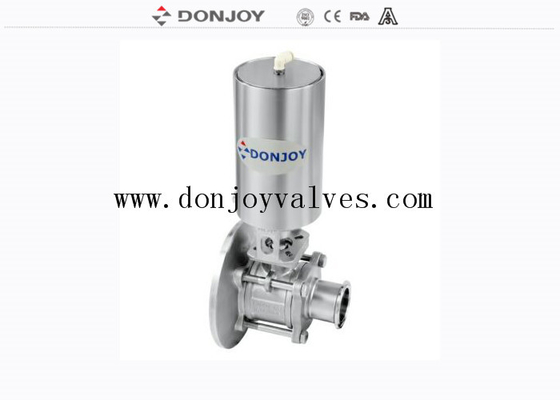

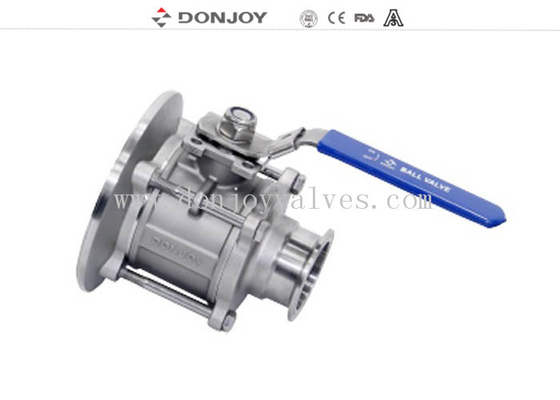

Welding SS316L Beverage Tanks DN40 Sanitary Ball Valve 0Welding SS316L Beverage Tanks DN40 Sanitary Ball Valve 1



Tag : Tank bottom valve, Ball valve for Tank bottom,  Donjoy Valves
