| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Ball Valve | Size: | DN25-DN200, 1"-8" |
|---|---|---|---|
| Handle: | Pull Handle | Media: | 304/316L |
| Connection: | Welded, Clamped, Thread, Flange | Grade: | Food Grade |
| High Light: | SS316L Non Retention Ball Valve,Medicine Non Retention Ball Valve,Pull Handle Sanitary Ball Valve |
||
Donjoy Manual SS316L inside & outside non retention ball valve for medicine and cosmetic
Description:
Type of 2 WAY Ball valve
1. Pneumatic 2 WAY Ball valve
2. Pneumatic 2 WAY Ball valve with positioner
3. Pneumatic 2 WAY Ball valvewith C-TOP
4. Pneumatic 2 WAY Ball valve With Mini C-TOP
5. Pneumatic 2 WAY Ball valveWith Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: | Donjoy Manual SS316L inside & outside non retention ball valve for medicine and cosmetic |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,
Advantage
1.Small Torque,
2.Long Service life
3.Full degreasing,
4.sealing elastic compensation
5. Small size, trace retention inside, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable

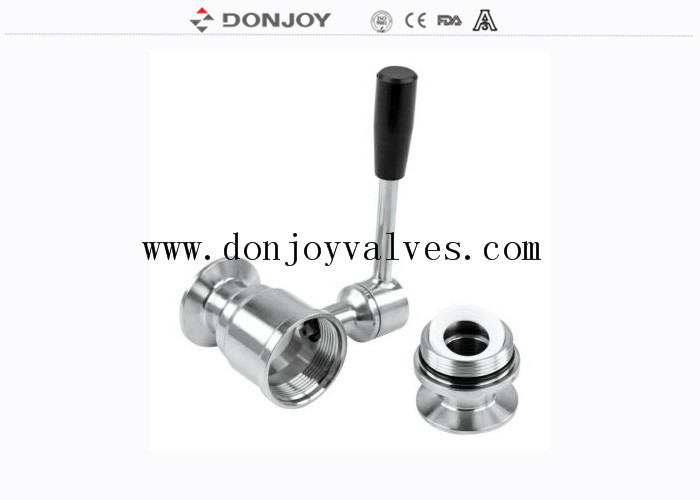

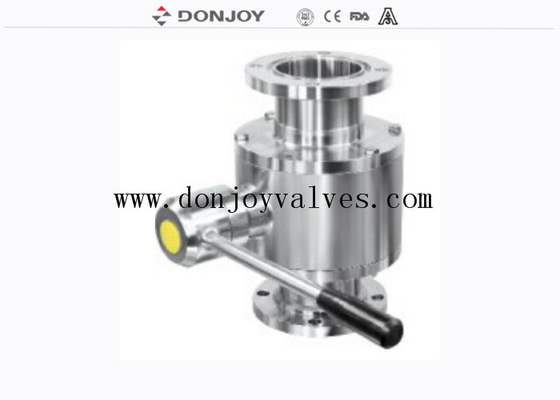

Related picture
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
If you need more informations,Please do not hesitate to contact us.
Tag: Straight ball valve, Sanitary ball valve , Mini Ball valve , Donjoy Valve
